What is PoE Switch???

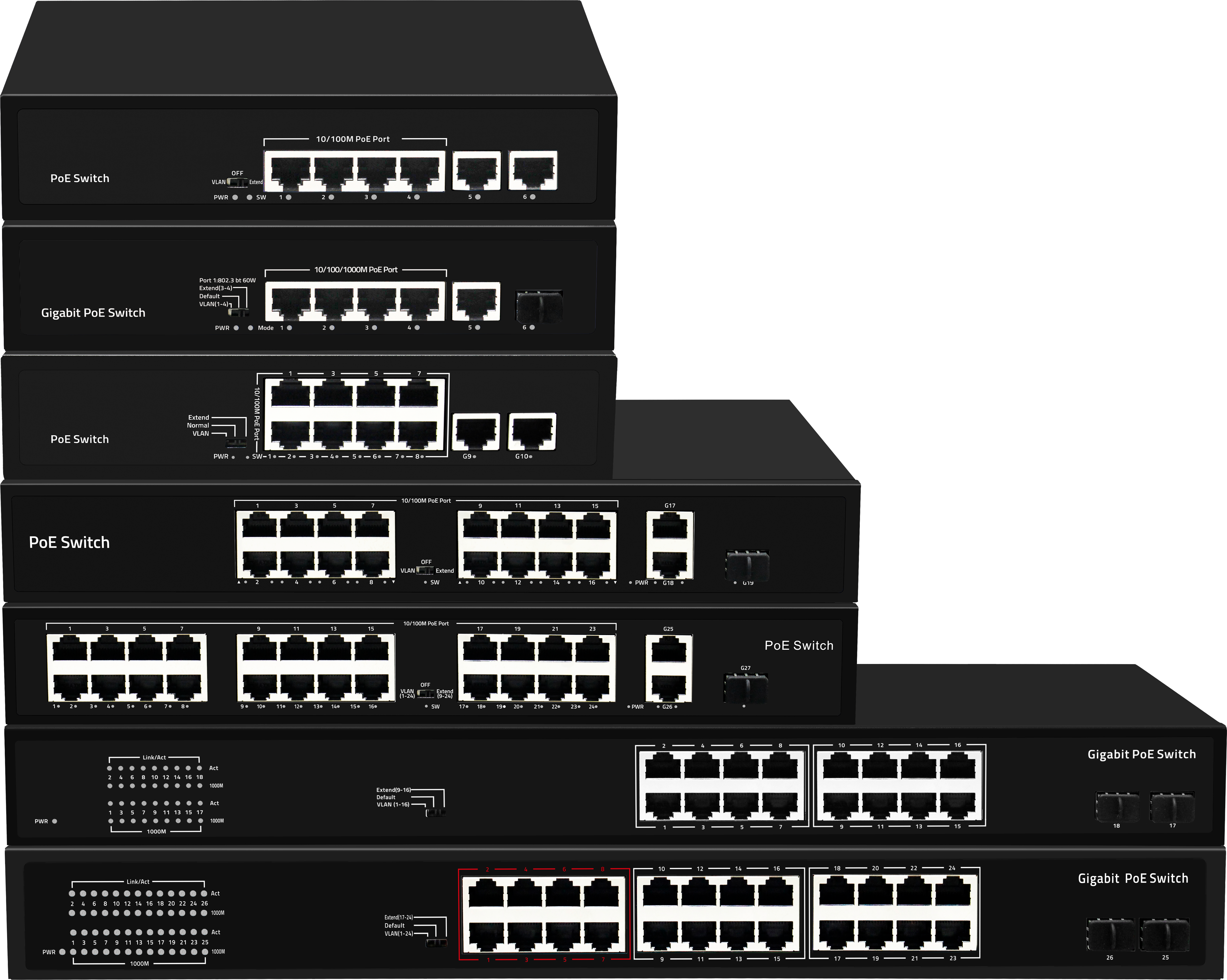

A PoE (Power over Ethernet) Switch is a network device that combines data transmission and electrical power delivery over a single Ethernet cable.

Key Features:

• Integrated Power and Data:

Delivers both electrical power and network data through standard Ethernet cables (e.g., Cat5e/Cat6), eliminating the need for separate power sources for connected devices.

• IEEE Standards Compliance:

802.3af (PoE): Provides up to 15.4W per port.

802.3at (PoE+): Supports up to 30W per port.

802.3bt (PoE++): Delivers up to 60W (Type 3) or 100W (Type 4) per port, suitable for high-power devices like PTZ cameras or LED lighting.

• Automatic Detection:

Safely negotiates power delivery by checking for PoE compatibility before activating, preventing damage to non-PoE devices.

• Power Budget Management:

Total available power is shared across all ports. For example, a 24-port switch with a 400W budget might allocate ~16.6W per port if all are used simultaneously.

Applications:

IP Cameras: Simplifies installation in locations without nearby power outlets.

Wireless Access Points (WAPs): Enables flexible placement for optimal coverage.

VoIP Phones: Reduces clutter by using a single cable for power and data.

IoT Devices: Powers sensors, smart displays, or lighting systems.

Advantages:

Cost Efficiency: Reduces wiring and electrical installation costs.

Flexibility: Devices can be placed in optimal locations, regardless of power access.

Safety: Adheres to IEEE standards to prevent overloading or short circuits.

Considerations:

Power Requirements: Ensure the switch’s total power budget meets the needs of all connected devices.

Cable Limitations: Power delivery efficiency decreases over long distances (max 100 meters for data + power).

Cost: PoE switches are typically more expensive than non-PoE counterparts.

Passive PoE Warning:

Avoid non-standard passive PoE devices, which lack negotiation and may damage equipment. Always use IEEE-compliant switches for safety.

In essence, a PoE switch streamlines network deployments by merging power and data infrastructure, ideal for modern, scalable setups.
