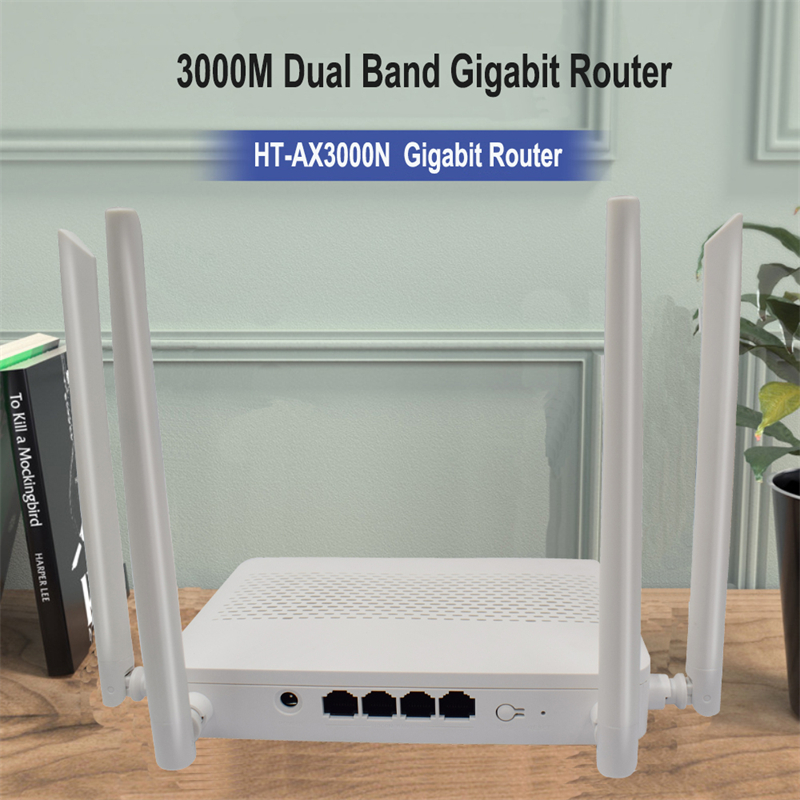

Dual Band 3000Mbps Wireless 6 AX Router

Model HT-AX3000N
Spec 4x5dBi Omni Direction Antennas, 5G Wi-Fi Transmission Rate
Detail

Feature


*The New Wi-Fi technology, leading IEEE 802.11AX 5GHz, IEEE 802.11b/g/n 2.4GHz

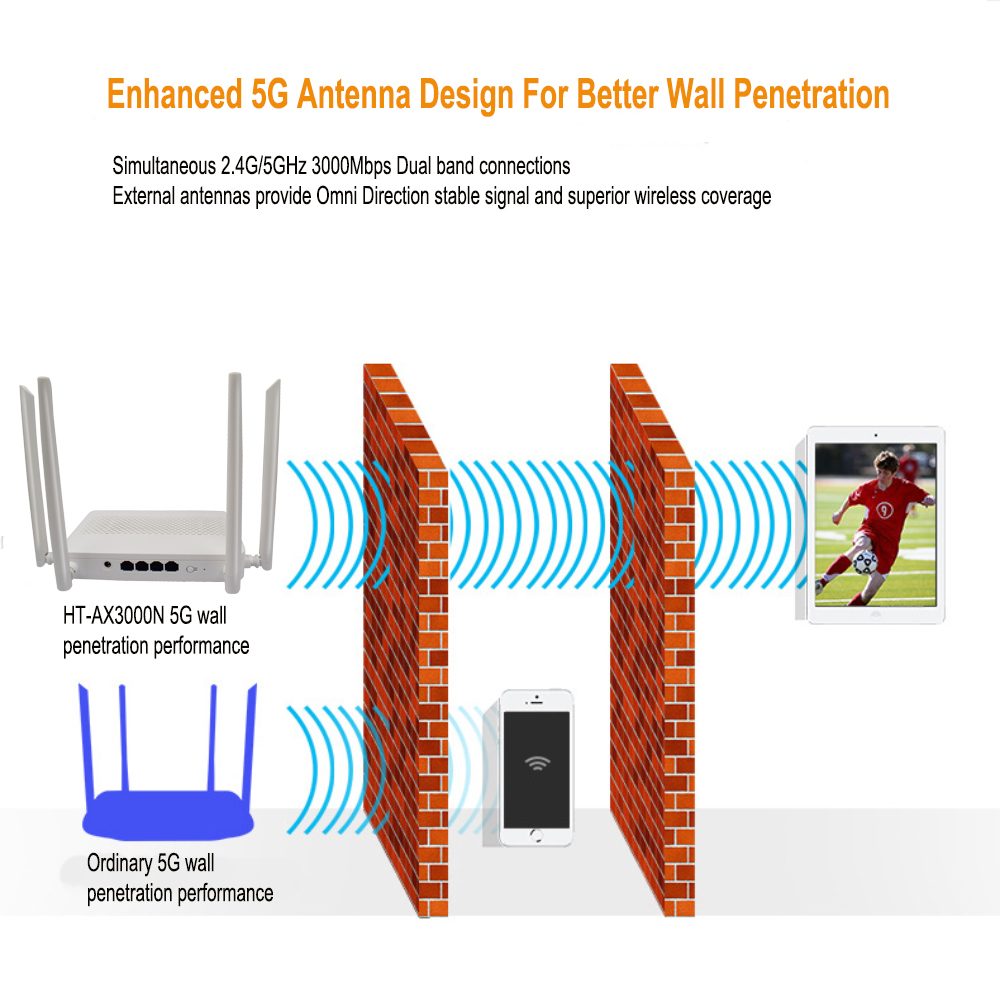

*   Simultaneous 2.4G/5GHz 3000Mbps Dual band connections
External antennas provide Omni Direction stable signal and superior wireless coverage
*   Provides 1 x 10/100/1000Mbps Auto-Negotiation Ethernet WAN port
*   Provides 3x 10/100/1000Mbps Auto-Negotiation Ethernet LAN port
*   Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
*   Built-in firewall features IP, MAC, URL filtering which flexibly controls online access and time
*   Built-in DHCP server with automatic dynamic IP address distribution

*   Easy Setup Assistant with multi-language support provides a quick & hassle free installation process


Product Description


Model No.
HT- AX3000N
Ports
1 x WAN 1000Mbps, 3xLAN 1000Mbps,
Button
1xReset, 1x DC connector, 1x Mesh bottom
LED
1 Led Light

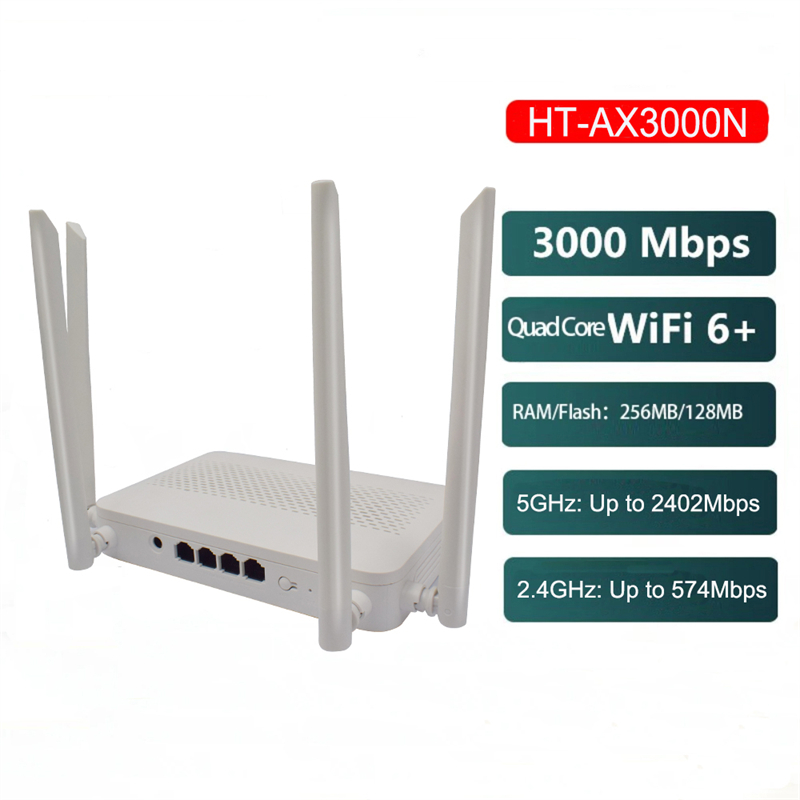

Signal Rate
5GHz: Up to 2402Mbps
2.4GHz: Up to 574Mbps
Chipset
IPQ5018+IPQ6102+IPQ8337
Flash
16MB
DDR3
128MB
5G PA
2*5532
Power Supply
DC12V/1A
Rated Voltage/ Frequency
input:100-240V. 50/60Hz
Wireless Standard
IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Transmit Power
<20dBm(2.4GHz)
<23dBm(5GHz)
Wireless Functions
Enable/Disable Wireless Radio, WMM,
Wireless Statistics
Wireless Security
64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
Antennas
4x5dBi Omni Direction
Management
Access Control, Local Management, IPV4/IPV6
WAN Type
Dynamic IP, Static IP, PPPoE
Operate Mode
Router Mode, Bridge Mode, Repeater Mode, Slava AP mode(MESH)
