Features
· Cutting-edge 4G network – share internet access with up to 30 Wi-Fi devices and enjoy download speeds of up to 150 Mbps and Upload speed to 50Mbps
· Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests

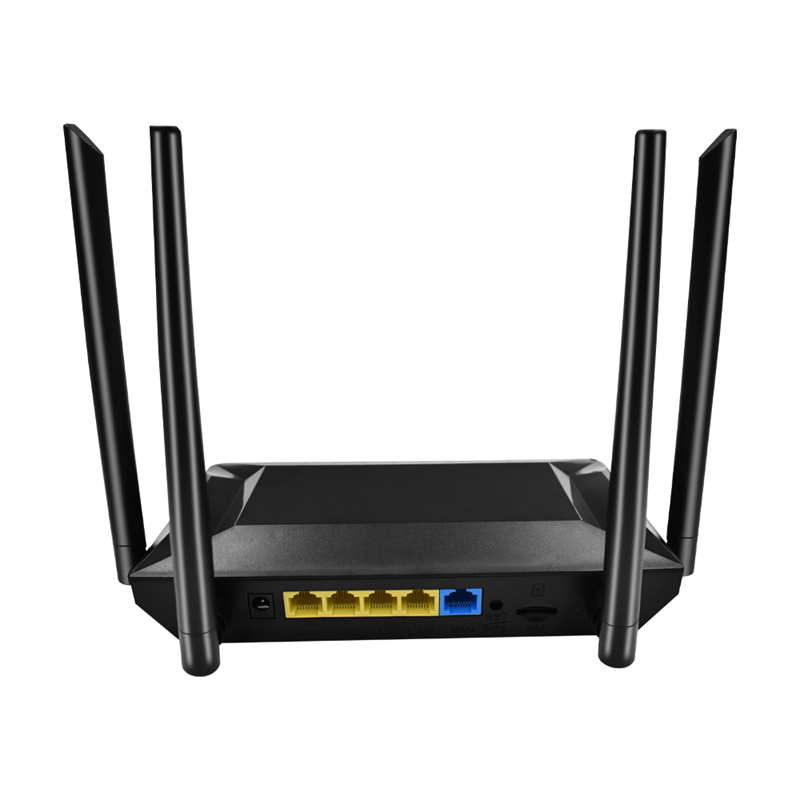

· Two advanced LTE antennas and Two WIFI antenna – enjoy stable and efficient connections to every device thanks to the two external antennas
· Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
Description
1) Support 3G, 4G LTE wireless network technology.
2) Support WCDMA, LTE TDD, LTE FDD Band.
3) Support SIM slot
4) 802.11n WiFi standard
5) 1* WAN port, 4* LAN ports

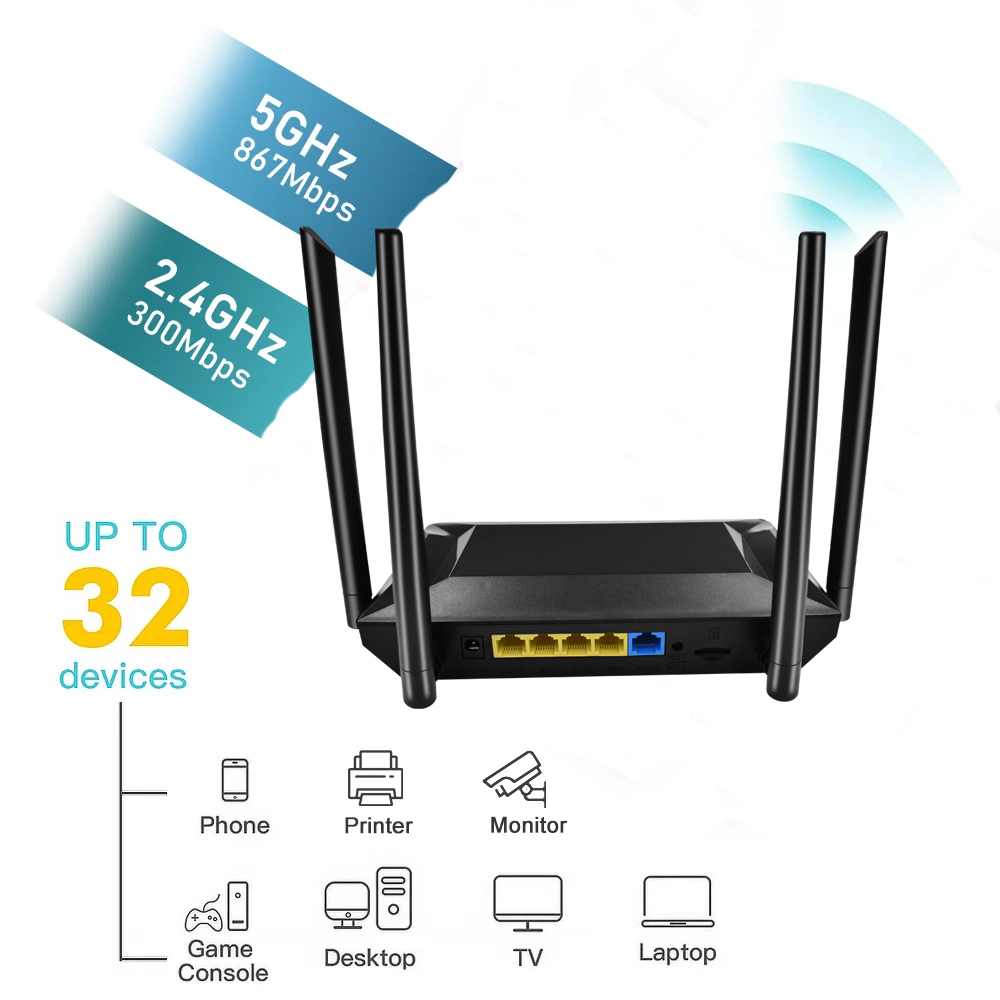

6) Support up to 30 users
7) 300Mbps WiFi
Spefication
Router hardware | ||
Chipset | MT7628NN | |
Power input port | DC 12V---1A | |
WAN Port | 1 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u) | |
LAN Port | 4 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u) | |
WPS/Reset Buttons | Buttons: WPS ,Long press: reset(Used to restore the factory configuration of the router.) | |
Power button | Router's power switch (not required) | |
LED indication | 1,power supply 2,WIFI Indication 3,3/4G:green light indicates 3G, 4G status 4,WAN Interfaces; 5,LAN1; 6,LAN2; 7,LAN3 8.LAN4 | |
Storage | SDRAM: 64MB Nor Flash: 8MB | |
Wireless parameters | ||
WIFI Frequency range | FCC: 2412-2462MHz(Ch1-Ch11) ETSI: 2412-2472MHz(Ch1-Ch13) | |
Mobile network frequency | FDD: B1 B3 B5 B7 B8 B20 B28 TDD: B38 B39 B40 B41 WCDMA: B1 B8 | |
Transmission rate | 11n:270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps | |
11g:54/48/36/24/18/12/9/6M(Adaptive) | ||
11b:11/5.5/2/1M(Adaptive) | ||
Number of working channels | 13 | |
Spread Spectrum Technology | DSSS(Direct Sequence Spread Spectrum) | |
Data modulation method | BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) | |
Sensitivity @PER (error packet rate) | 270M:-61dBm@10% PER;130M: -61dBm@10% PER;108M:-61dBm@10% PER;54M:-65dBm@10% PER;11M:-85dBm@8% PER;6M:-88dBm@10% PER;1M:-90dBm@8% PER | |
Transmission distance | Up to 50 meters in the room and up to 200 meters in the outdoors (depending on the environment) | |
RF Power | 11n : 15±dBm; 11g : 17±1dBm; 11b : 19±1dBm(Typical value) | |
LTE related hardware | ||
SIM Card Slot | Rear flip SIM card Slot | |
Antennas | External 4 antenna, corresponding to 4G main antenna, wifi dual antenna | |
Router software features | ||
IP Address | Static or dynamic | |
PPP over Ethernet | YES | |
The maximum number of users | 32 (Simultaneous Internet access) | |
Routing Protocol | Static route, RIP1/RIP2 | |
Configuration & Management | Based on WEB interface management (HTTP) | |
DHCP | Support Server and Client | |
Firewall protection | Built-in NAT firewall | |
