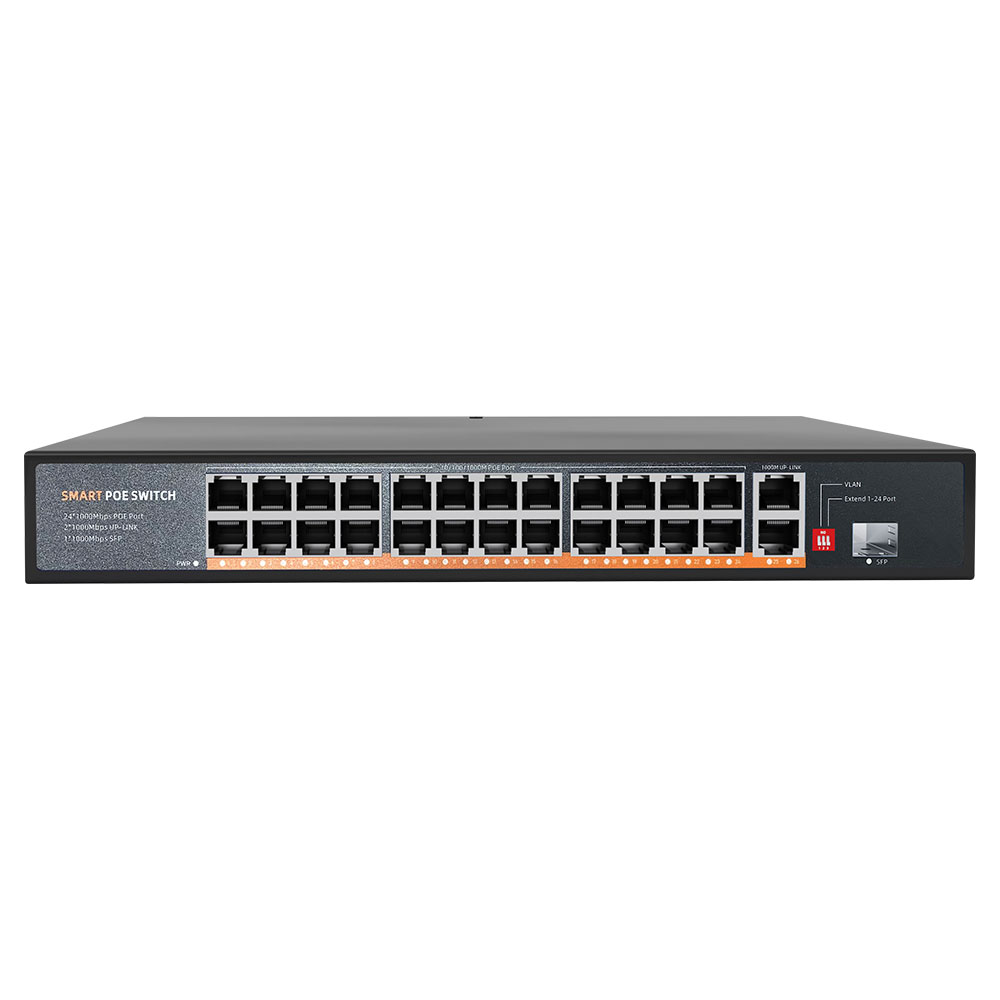

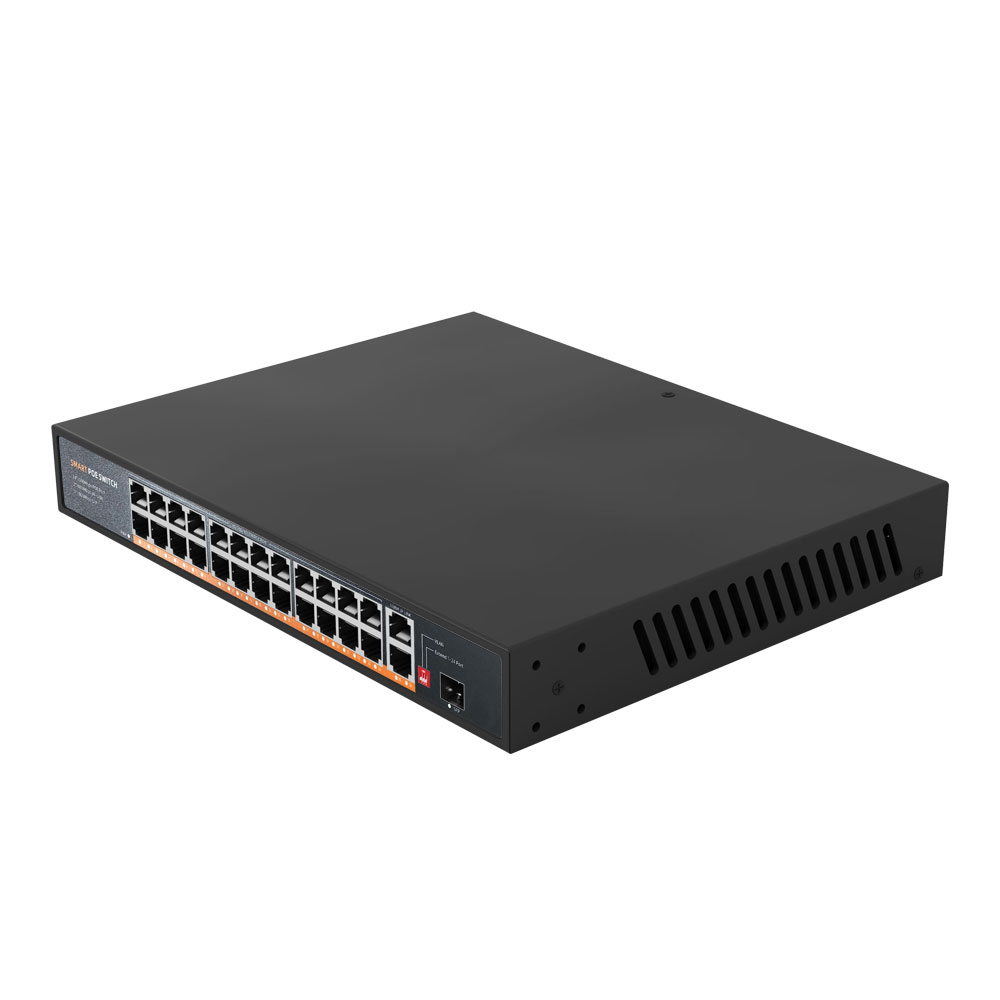

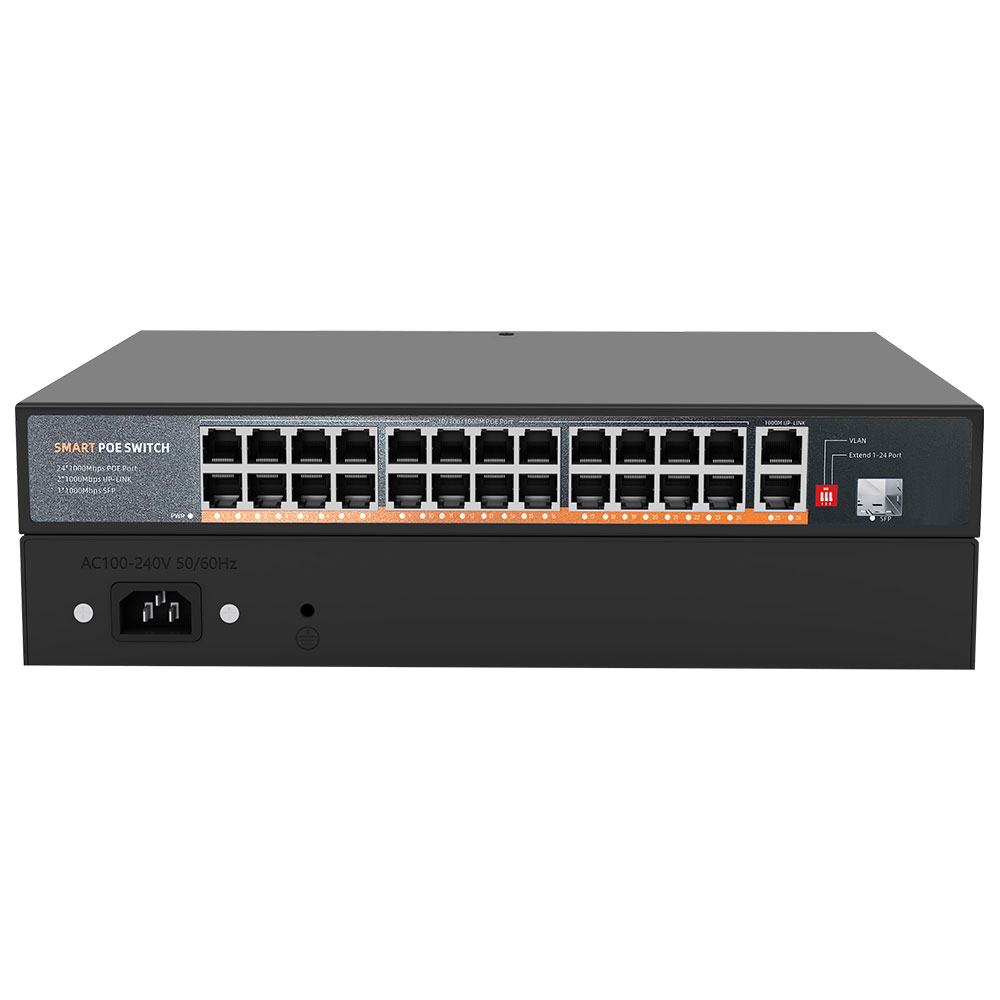

24-Port 10/100M PoE Switch with 2 1000M Uplink Ports and 1 SFP Port

Model HT-POE1624
Spec PoE Power: IEEE802.3af/at, Max 30W per port, Total Power 300W
Detail

Feature


* 250M cable power support 300W MAX power output
* Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
* LED indicators for monitoring power, link, activity and speed
* Each POE+ port Up to 30W of power on(802.3af/at)
* Compatible With All IEEE 802.3at or Legacy
* Safe: Low Power Devices Receive Only the Power They Need
* Automatic Detection and Protection of Non–standard Ethernet Terminals
* Internal power supply adapter(AC 100-265V 50/60Hz 3.5A MAX 300W )
* Easy installation and maintenance

* complies to IEEE 802.3af/at PoE standard and is backward


Products Description


Model
HT-POE1624
100M POE Rj45
24
Uplink
2 gigabit uplink
Exchange Mechanism
Store-and-forward
Bandwidth
16G
MAC
8K


Environmental
Working Temperature: -10℃~55℃
Storage temperature: -40℃~70℃
Working Humidity :10%~90% RH non-condensing
Storage Humidity:5%~90% RH non-condensing
Power input
AC 100-265V 50/60Hz MAX 300W
POE
IEEE802.3af/at, Port PoE 30W,


Standards Protocols
IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
IEEE 802.3af/at
IEEE 802.3x

Speed
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Gigabit Ethernet 2000Mbps full-duplex


Network Media
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)
1000Base-SX:62.5μm/50μm MMF(2m~550m)
1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
