4g Lte Wireless Router

Model HT-CPE303S
Spec Support 4G LTE wireless network technology
Detail

Feature:

Cutting-edge 4G network – share internet access with up to 10 Wi-Fi devices and enjoy download speeds of up to 150 Mbps and Upload speed to 50Mbps
Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by
years of field tests
Two advanced LTE antennas and Two WIFI antenna – enjoy stable and efficient connections to every device
thanks to the two external antennas

Description
1) Support 4G LTE wireless network technology.
2) Support LTE TDD, LTE FDD Band.
3) Support SIM slot
4) 802.11n WiFi standard
5)1* LAN ports

6) Support SMS


Product Description

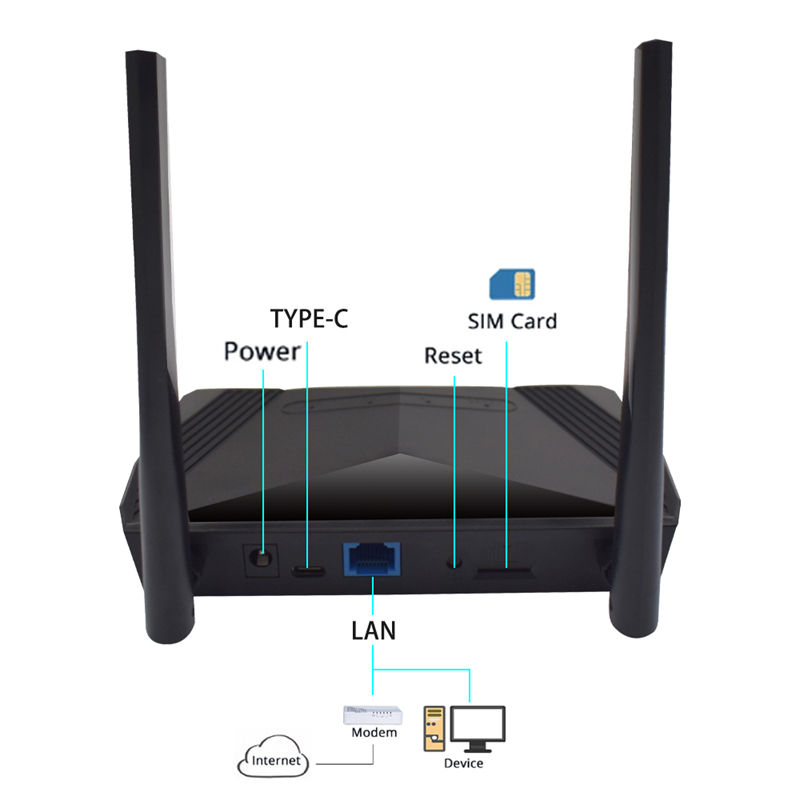

Router hardware
Chipset
ASR1803S
Power input port
TYPE C Cable Power
LAN Port
1 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u)
WPS/Reset Buttons
Buttons: WPS ,Long press: reset(Used to restore the factory configuration of the router.)
Power button
Router's power switch (not required)
LED indication
1,power supply 2,WIFI Indication 3,4G:Blue light indicates 4G status 4,LAN1;
Wireless parameters
WIFI Frequency range
FCC: 2412-2462MHz(Ch1-Ch11) ETSI: 2412-2472MHz(Ch1-Ch13)
Mobile network frequency
FDD: B1 B3 B5 B8 TDD: B34 B38 B39 B40 B41 WCDMA: B1 B5 B8
Transmission rate
11n:135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps
11g:54/48/36/24/18/12/9/6M(Adaptive)
11b:11/5.5/2/1M(Adaptive)
Number of working channels
13
Spread Spectrum Technology
DSSS(Direct Sequence Spread Spectrum)
Data modulation method
BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Sensitivity @PER (error packet rate)
PER;108M:-61dBm@10% PER;54M:-65dBm@10%
PER; 11M:-85dBm@8% PER;6M:-88dBm@10%
PER;1M:-90dBm@8% PER
Transmission distance
Up to 50 meters in the room and up to 200 meters in the outdoors (depending on the environment)

RF Power
11n : 17±dBm;
11g : 18±1dBm;
11b : 19±1dBm(Typical value)
LTE related hardware
SIM Card Slot
Rear flip SIM card Slot
Antennas
External 2 antenna, corresponding to 4G main antenna, and wifi antenna
