— Features
•External antennas provide omni directional stable signal and superior wireless coverage
• Provides 1 x 10/100Mbps Auto-Negotiation Ethernet WAN port
• Provides 3 x 10/100Mbps Auto-Negotiation Ethernet LAN port
• Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
• Built-in firewall features IP, MAC, URL filtering which flexibly controls online access and time
• Built-in DHCP server with automatic dynamic IP address distribution
• Easy one-touch wireless security encryption with the WPS button
• Easy Setup Assistant with multi-language support provides a quick & hassle free installation process
— Specifications
Model No. | HT-WR960N |

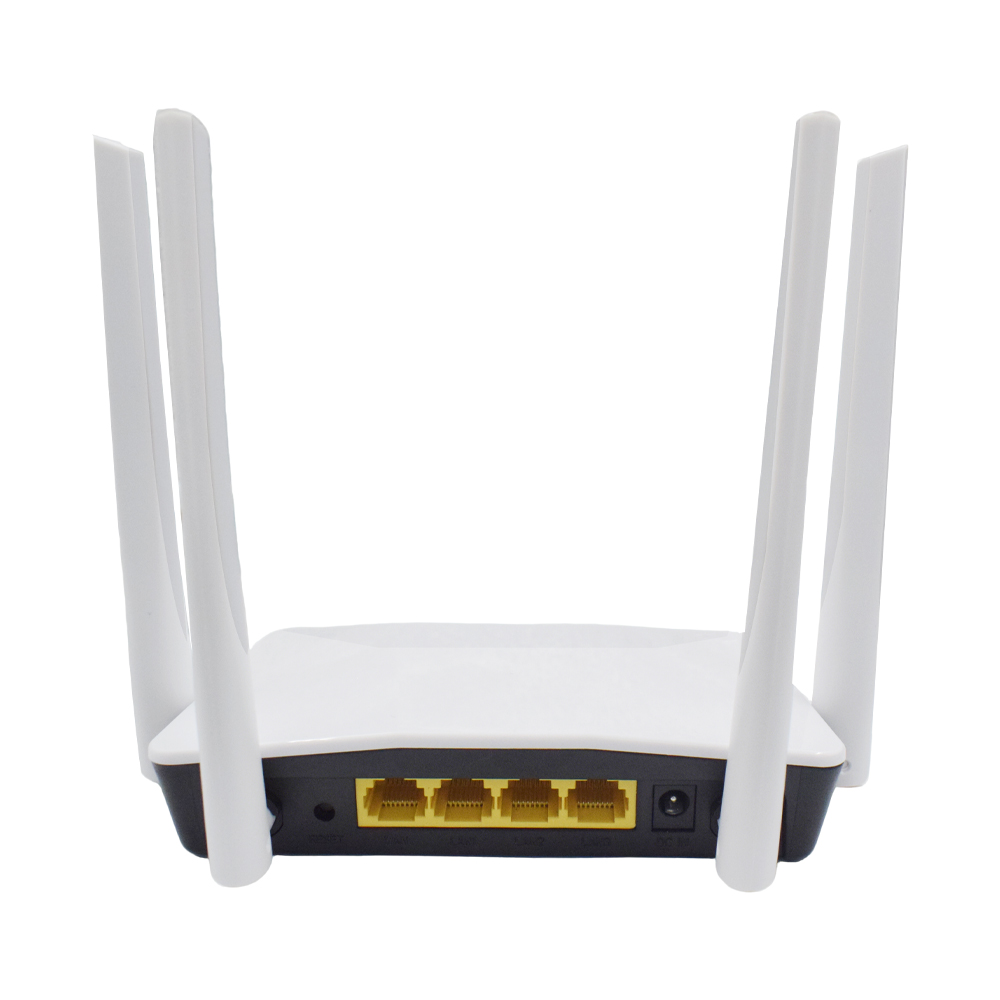

Ports | 1 x WAN 100Mbps, 3xLAN 100Mbps, |
Button | 1xReset/WPS, 1x DC connector |

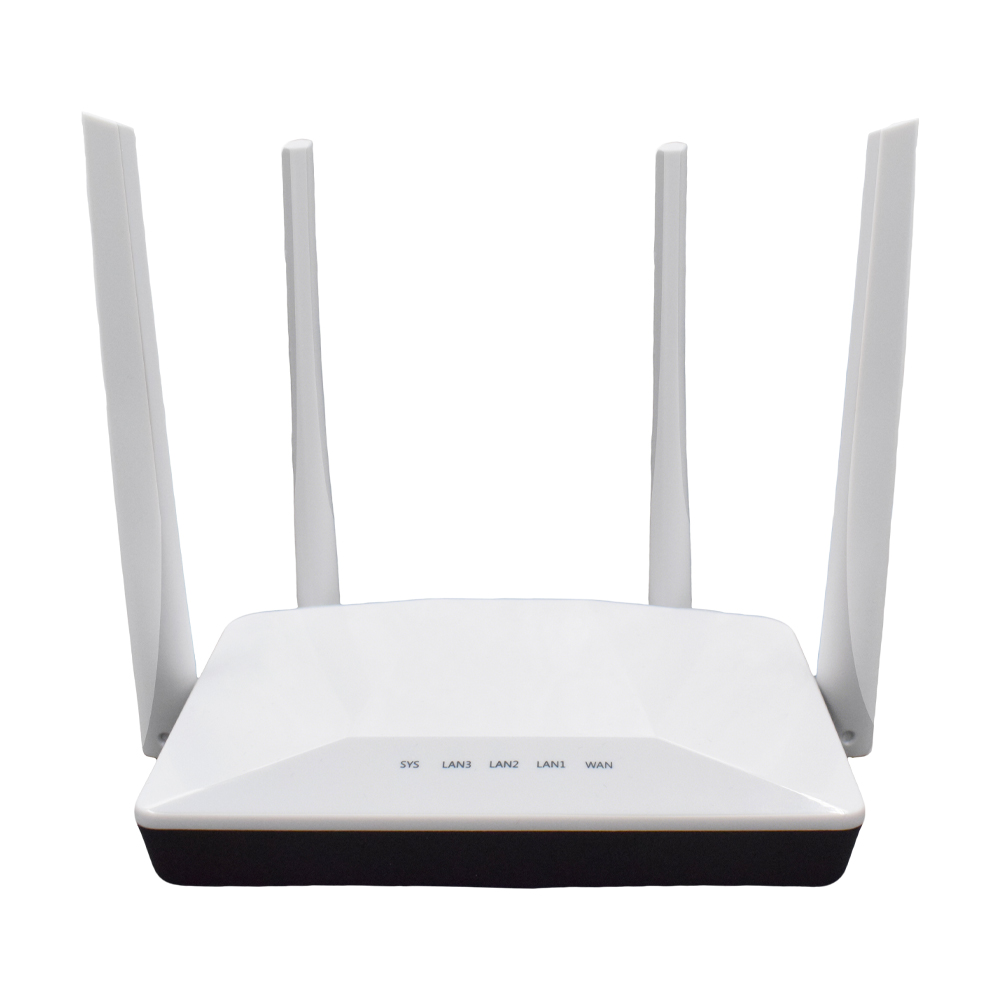

LED | 3 x LAN, 1xWAN, 1xPower |
Chipset | MTK7628KN |
Flash | 4MB |
Power Supply | DC5V 1A |
Rated Voltage/ Frequency | input:100-240 VA .C. 50/60Hz |
Standard | IEEE 802.11b/g/n/ |
Transmit Power | 20DBm MAX |
Sensitivity | 802.11b: -93dBm /802.11g: -73dBm / 802.11n: -68dBm |
Speed | 802.11n: up to270M: -68dBm@10% PER |
Wireless Security | WPA-PSK/ WPA2-PSK encryption |
Antennas | 2x5dBi Omni Direction |
Distance | Outdoors 300m, Indoor 100m(According to the actual environment change) |
WAN Type | PPPoE, Dynamic IP, Static IP ,PPtP |

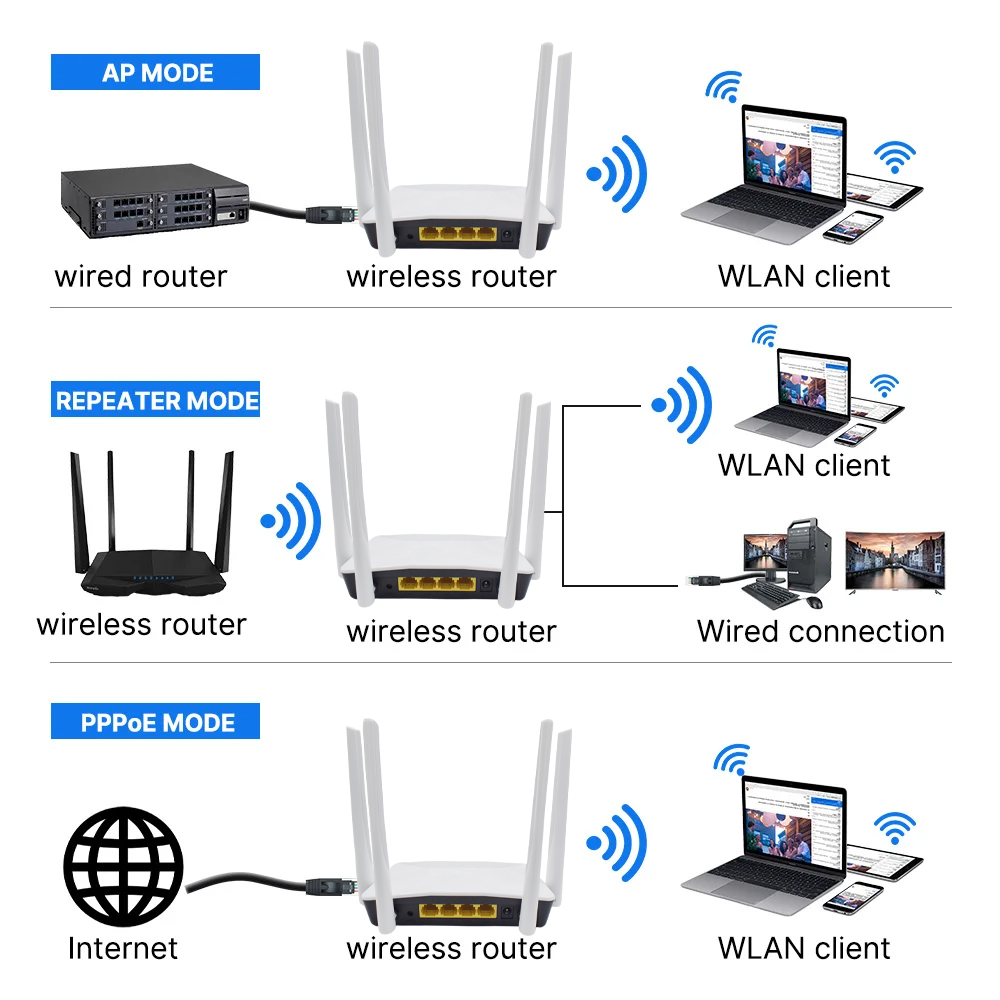

Function | Router Repeater Mode Web Remote management IPTV/IGMP Snooping |
