300Mbps Wireless N 4G Router

Model HT-CPE502
Spec Support SIM slot,Support WCDMA, LTE TDD, LTE FDD Band
Detail

Feature：


Cutting-edge 4G network-share internet access with up to 30 WiFi devices and enjoy download speeds of up to 150Mbps and Upload；speed to 50Mbps

Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests；

Two advanced LTE antennas and Two WIFI antenna -enjoy stable and efficient connections to every device thanks to the two external antennas ；

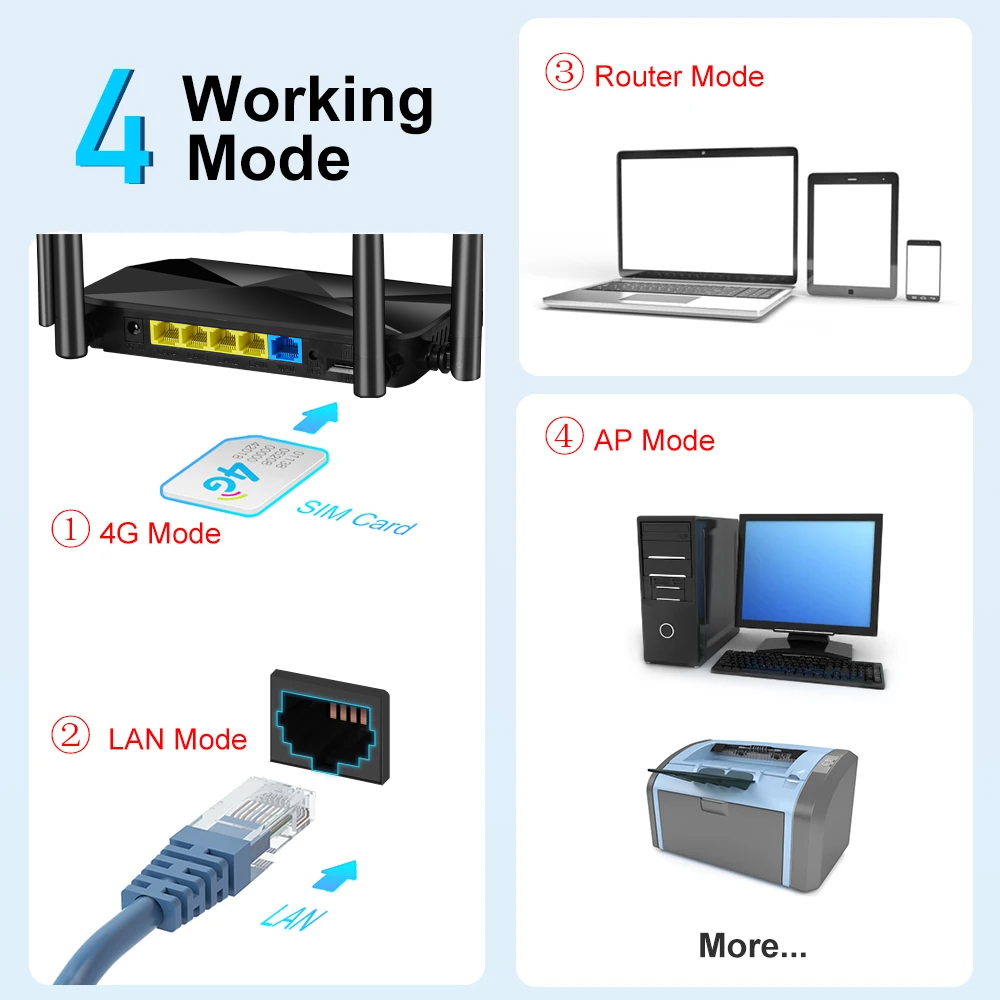

Wi-Fi router mode -plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection


Description


1) Support 3G, 4G LTE wireless network technology.
2) Support WCDMA, LTE TDD, LTE FDD Band.
3) Support SIM slot
4) 802.11n WiFi standard
5) 1* WAN port, 4* LAN ports
6) Support up to 30 users
7) 300Mbps WiFi

Product Description


                                                                                        Router hardware
Chipset
MT7628NN
Power input port
DC 12V---1A

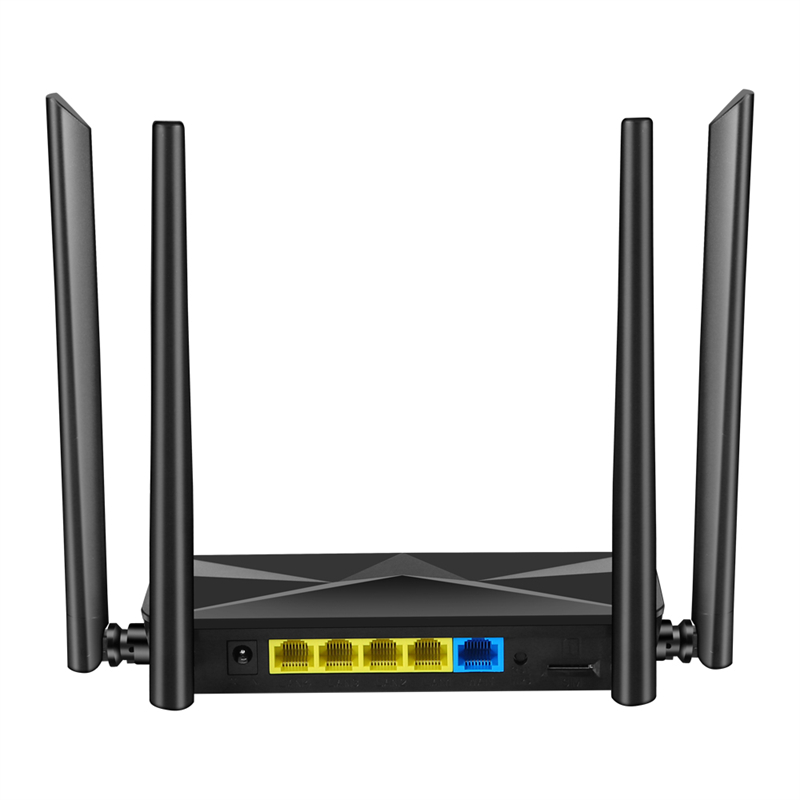

WAN Port
1 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u)
LAN Port
4 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u)
WPS/Reset Buttons
Buttons: WPS ,Long press: reset(Used to restore the factory configuration of the router.)
Power button
Router's power switch (not required)

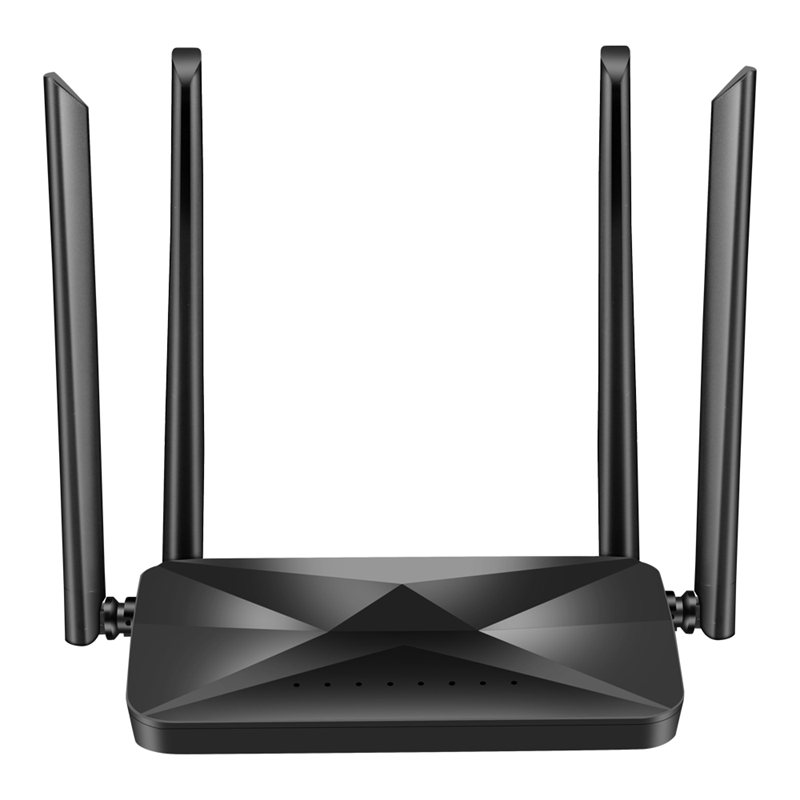

LED indication
1,power supply
2,WIFI Indication
3,3/4G:green light indicates 3G, 4G status
4,WAN Interfaces;
5,LAN1;
6,LAN2;
7,LAN3
8.LAN4
Storage
SDRAM: 64MB
Nor Flash: 8MB
Wireless parameters
WIFI Frequency range
FCC: 2412-2462MHz(Ch1-Ch11)
ETSI: 2412-2472MHz(Ch1-Ch13)
Mobile network frequency
FDD: B1 B3 B5 B7 B8 B20 B28
TDD: B38 B39 B40 B41
WCDMA: B1 B8
Transmission rate
11n:270/243/216/162/108/81/54/27Mbps
135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
65/58.5/52/39/26/19.5/13/6.5Mbps
11g:54/48/36/24/18/12/9/6M(Adaptive)
11b:11/5.5/2/1M(Adaptive)
Number of working channels
13
Spread Spectrum Technology
DSSS(Direct Sequence Spread Spectrum)
Data modulation method
BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Sensitivity @PER (error packet rate)
270M:-61dBm@10% PER;130M: -61dBm@10%
PER;108M:-61dBm@10% PER;54M:-65dBm@10%
PER;11M:-85dBm@8% PER;6M:-88dBm@10%
PER;1M:-90dBm@8% PER
Transmission distance
Up to 50 meters in the room and up to 200 meters in the outdoors (depending on the environment)
RF Power
11n : 15±dBm;
11g : 17±1dBm;
11b : 19±1dBm(Typical value)

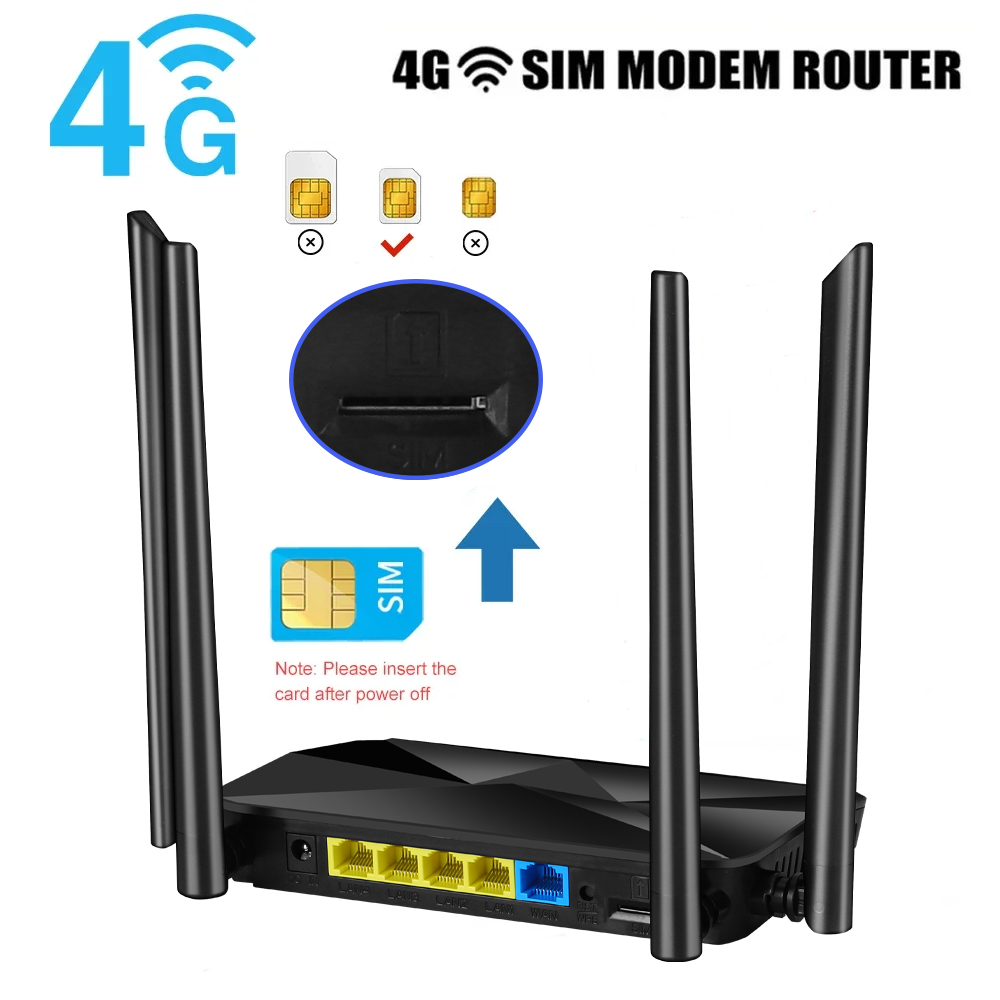

SIM Card Slot
Rear flip SIM card Slot
Antennas
External 4 antenna, corresponding to 4G main antenna, wifi dual antenna
IP Address
Static or dynamic
PPP over Ethernet
YES

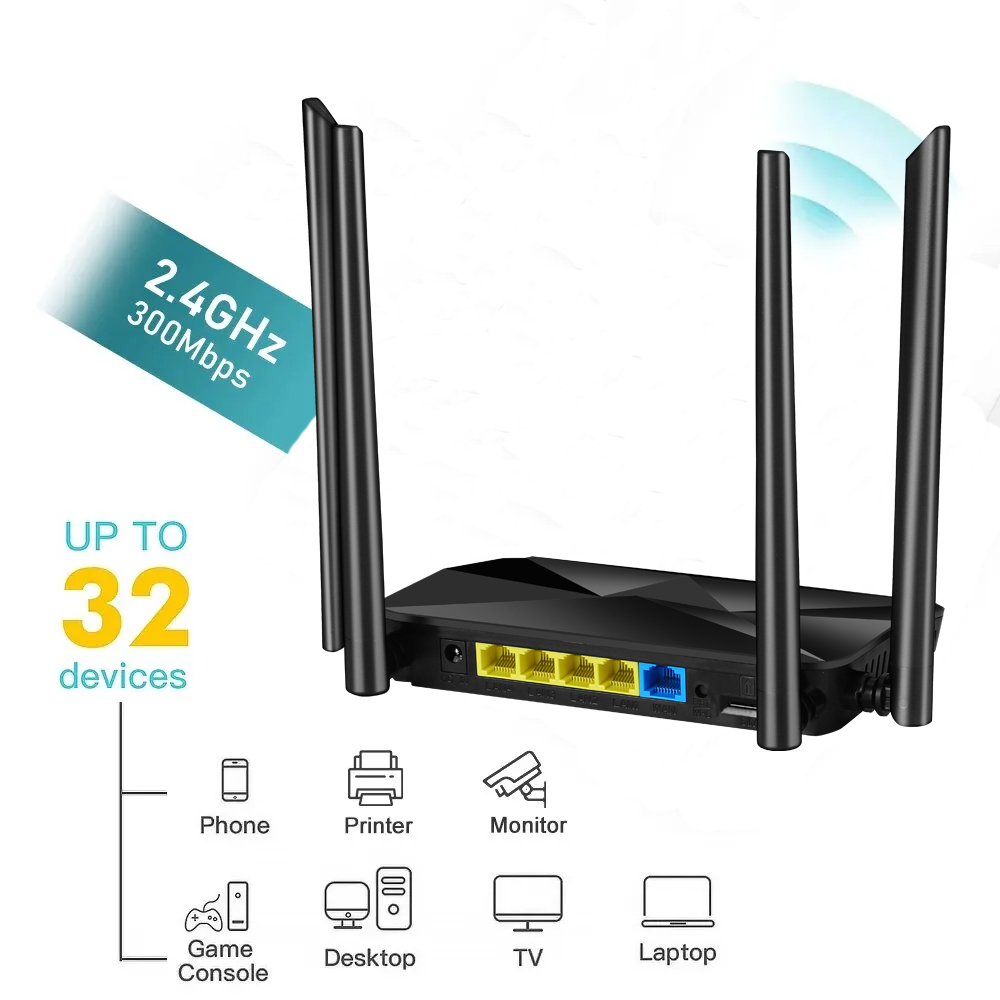

The maximum number of users
32 (Simultaneous Internet access)

Routing Protocol
Static route, RIP1/RIP2
Configuration & Management
Based on WEB interface management (HTTP)
DHCP
Support Server and Client
Firewall protection
Built-in NAT firewall
