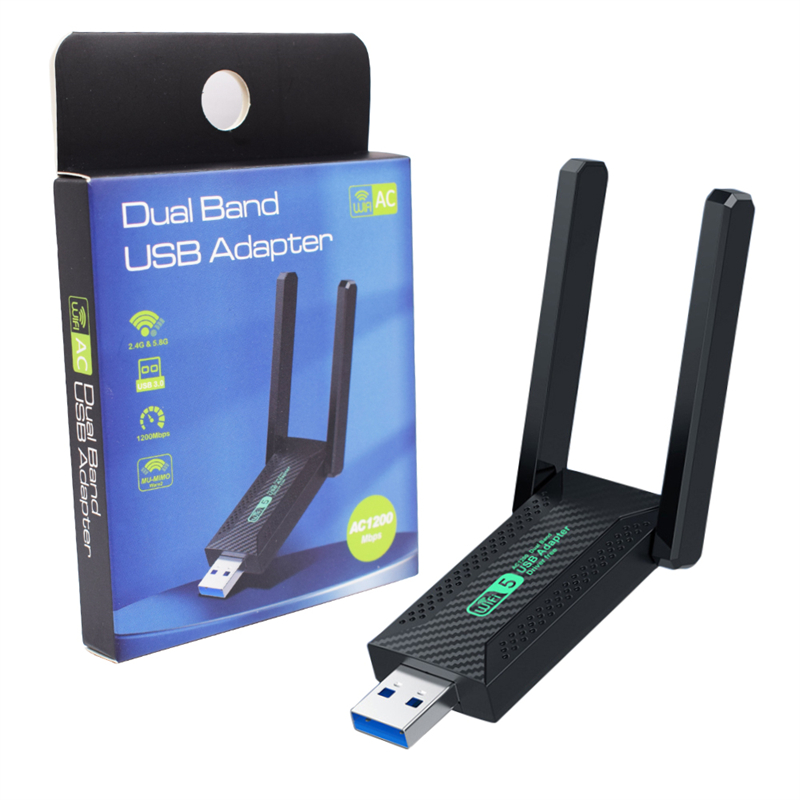

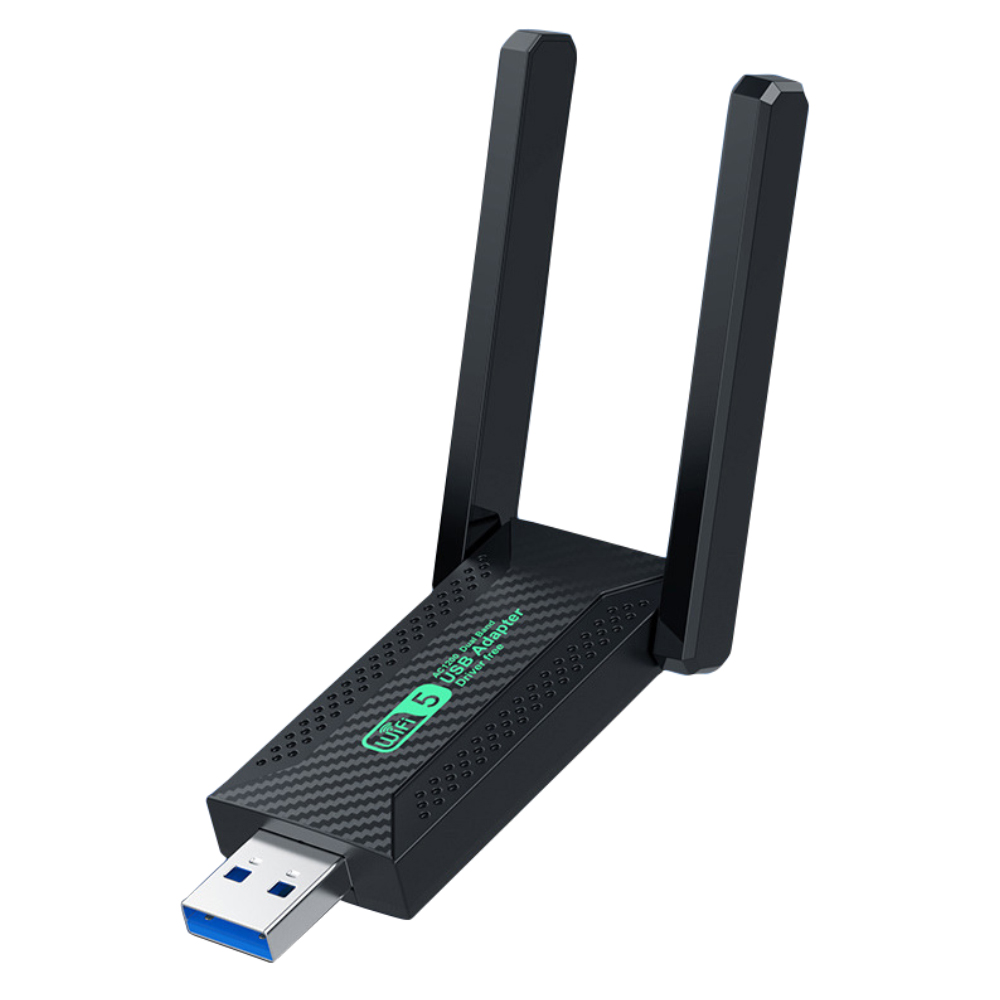

1200M Dual band Wireless AC USB adapter FREE DRIVER

Model HT-WR1200F
Spec Antenna Built-in antenna，free driver
Detail

Feature


1. Super Speed USB 3.0 transmission speed is 10 times faster than USB2.0, uses more fluently and effectively. compatible with USB 2.0 and USB 1.1 devices as well.
2. 802.11ac/a/b/g/n standard, 2.4G / 5.0GHz ,the maximum transfer rate 1200Mbps (2.4G 300Mbps + 5G 867Mbps)
3. Simulation AP function
4. Compatible with Windows xp, Vista , Win7 , Win8 , Win10 ,Linuk,Mac OS 10.9-10.15
5. Ultra-low-power design, energy saving
6. Transmit Power: <20dBm

Description


Standard IEEE802.11 ac/a/b/g/n standard
Interface type USB3.0/Compatible USB2.0
Antenna Built-in antenna
Wireless speed 2.4G:300Mbps ;5.0G:867Mpbs
Frequency 2.4Ghz / 5.0Ghz
Operation system Windows XP/Vista/WIN 7/WIN 8 etc.
Compatible with all brand laptop desktop


Product Description
Standard
IEEE802.11b/g/n/ac
Interface
USB 3.0
Chip
MTK7612UN
Transmission rate
1200Mbps
Frequency range
2 .4&5.8GHz
Antenna
External 2dBi antenna
Transmit Power
802.11a:14—16dBm@ 54Mbps(OFDM)
802.11:b16—20dBm@ 11Mbps
802.11g:14—16dBm@ 54Mbps
802.11n:14—16dBm@ 300Mbps
802.11ac:12.5~13.5dBm@8673Mbps(AC80)
Receive sensitivity
802.11a:-66+/-1dBm 802.11b:-80+/-1dBm
802.11g:-73+/-1dBm
802.11n:-70+/-1dBm(HT20)；-64+/-1dBm(HT40)
802.11ac:-80+/-1dBm(MCS0)；-56+/-1dBm(MCS9),(AC80)
Secure Encryption
WFA，WPA，WPA2, WPS2.0，WAPI
Operating Voltage
5.0VDC± 5%
Power Consumption
Transceiver status: 220mA (max) TX state only: 220mA (max)RX state only: 180mA (max)
Drive-Free Applicable System (OS)
Windows Vista/XP/2000/7/8/10

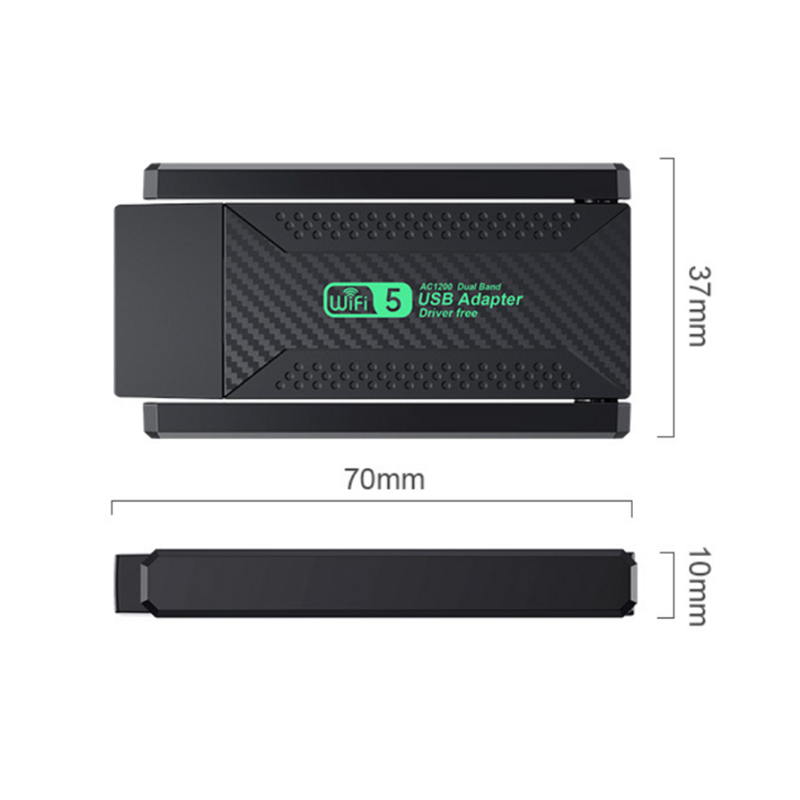

Dimensions (HxWxD)
70*37*10mm
