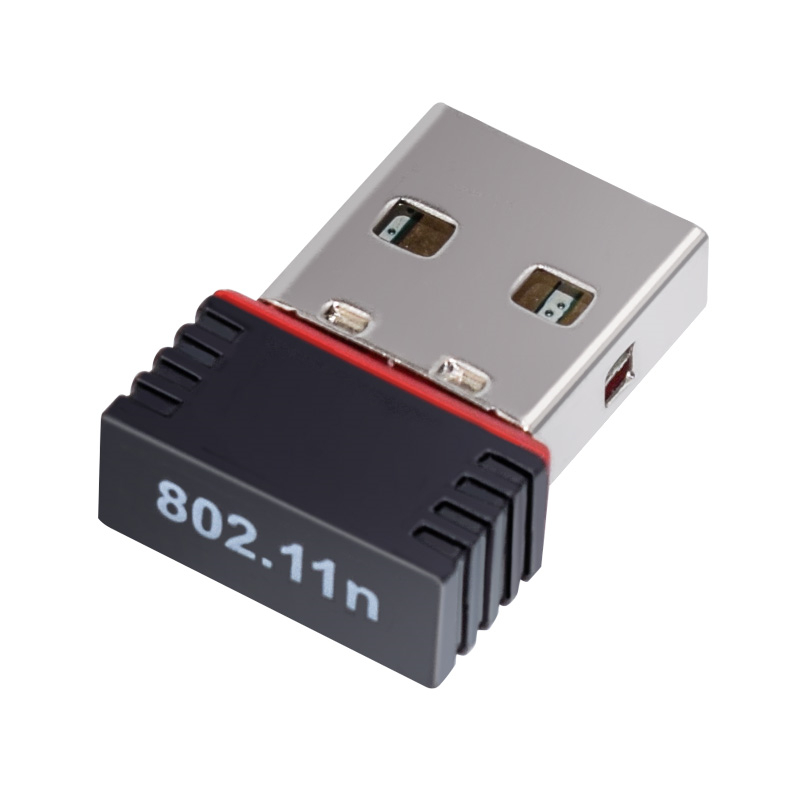

150M Wireless b/g/n NANO USB adapter

Wireless Standards

IEEE 802.11n
(draft)

IEEE
802.11g

IEEE
802.11b

Frequency
Band

802.11n: up to 150Mbps (downlink)
and 150Mbps (uplink)

802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6
Mbps auto fallback

802.11b: 11 / 5.5 / 2 / 1 Mbps
auto fallback

Chipset

RTL8188

RF
Frequency

2412 ~ 2462 MHz
(North America)

2412 ~ 2472
MHz (Europe)

2412 ~ 2484
MHz (Japan)

Radio
Channel

1 ~ 14 channels
(Universal Domain Selection)

Range
Coverage

Up to 3 times
farther range than 802.11g

Antenna
type

Integrated
Antenna

Roaming

Full mobility and
seamless roaming from
cell to cell

RF
Output Power

20 dBm
max (Typical)

Modulation

11n: BPSK, QPSK, 16QAM, 64QAM with
OFDM

11g:
BPSK, QPSK, 16QAM, 64QAM, OFDM

11b:
DQPSK, DBPSK, DSSS, CCK

Data
Security

64/128-bit WEP
Encryption

WPA, WPA-PSK, WPA2,
WPA2-PSK. TKIP/AES

Network

Auto-switch to use 802.11n or 802.11g
or 802.11b mode

Supports Ad-Hoc,
Infrastructure WLAN network

Wireless
roaming

Data rate auto fall-back
under noisy environment
or longer range distance

Site Survey with
Profile function

Configuration
& Management

Plug-and-Play setup
and installation

Management Utility
supports 2000/ XP/WIN7/8/Vista

Media Access
Control

CSMA/CA
with ACK

Operating
System

Windows 2000,
XP 7/8/10 32/64-bit,

Linux and MAC OS X

Environment

Operating Temperature:
0oC to 40oC

Storage Temperature:
-20oC to 75oC

Operating Humidity:
10% ~ 90% (Non Condensing)

Storage Humidity:
5% ~ 95% (Non Condensing)

Compliant

CE,ROHS
