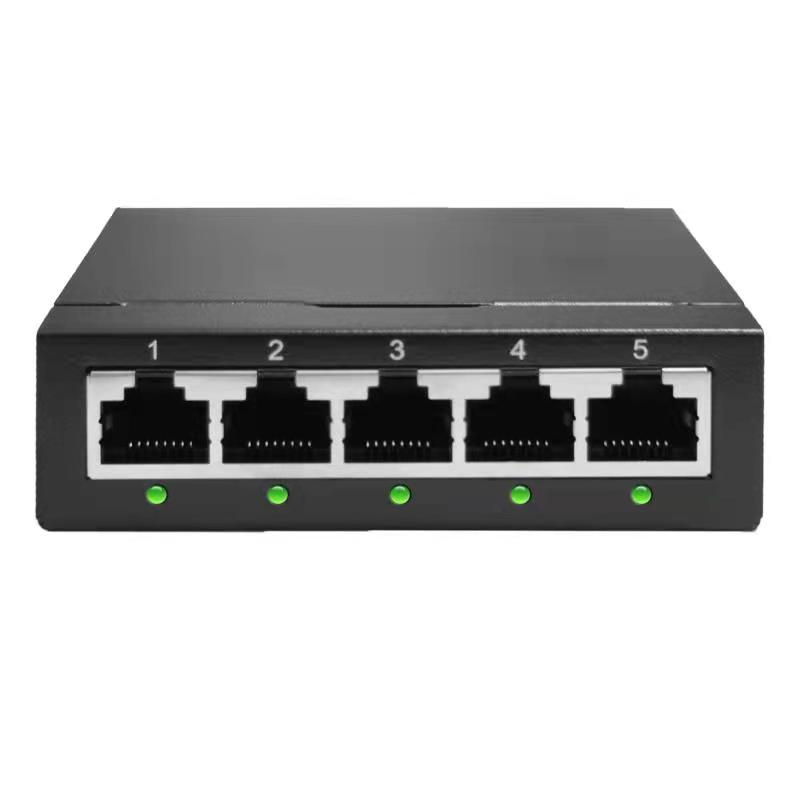

5p 10/100/1000M Network Switch iron shell

Model HT-S2005G
Spec Desktop Steel case ,5 10/100/1000Mbps RJ45 ports
Detail

Specifications


1.5 10/100/1000Mbps RJ45 ports

2.Full Duplex and Half Duplex mode

3.Desktop ,Metal Case

4.OEM/ODM service

5.Realtek Chipset


Feature:


Fully Complies with IEEE 802.3, 802.3u and 802.3ab standards

5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput

Supports MAC address auto-learning and auto-aging

LED indicators for monitoring power, link, activity

Desktop Steel case

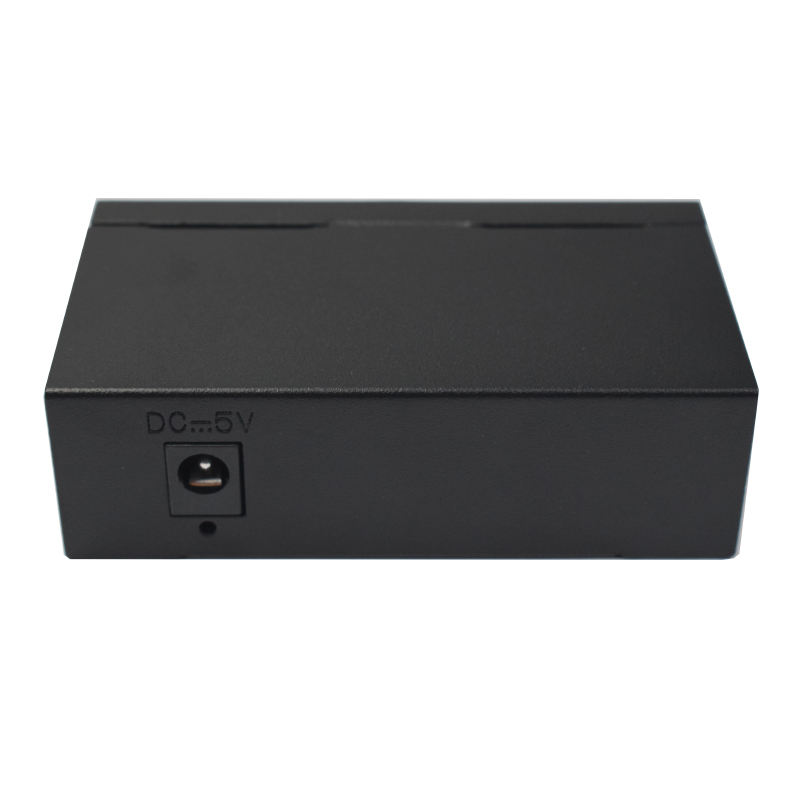

External power adapter supply



Products Description


Number of Ports
5 10/100/1000M RJ-45 ports
UPLINK
Any port (support Auto-MDI/MDIX function)

Data Transfer
Ethernet: 10Mbps (half duplex),20Mbps (full duplex);
Fast Ethernet: 100Mbps (half duplex),200Mbps (full duplex); Gigabit Ethernet: 2000Mbps (full duplex)

Network Medium
10Base-T Cat. 3 or above Cat.3 UTP(≤100m) 100Base-TX Cat. 5 UTP(≤100m)
1000Base-T Cat. 5 or above Cat.5 UTP(≤100m)
Chipset
Realtek8367


Network protocol
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet ANSI/IEEE Std 802.3 Nway Auto- Negotiation
IEEE 802.3x flow control
Transmits Method
Store-and-Forward

Fibering and Transmitting speed
10BASE-T 14, 880pps/port
100BASE-TX 148, 800pps/port
