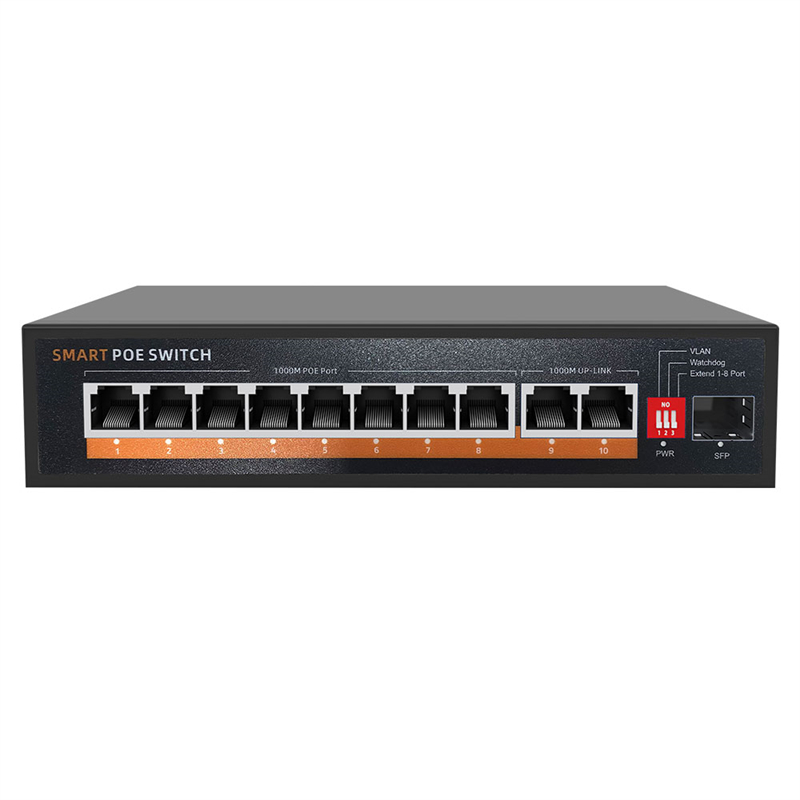

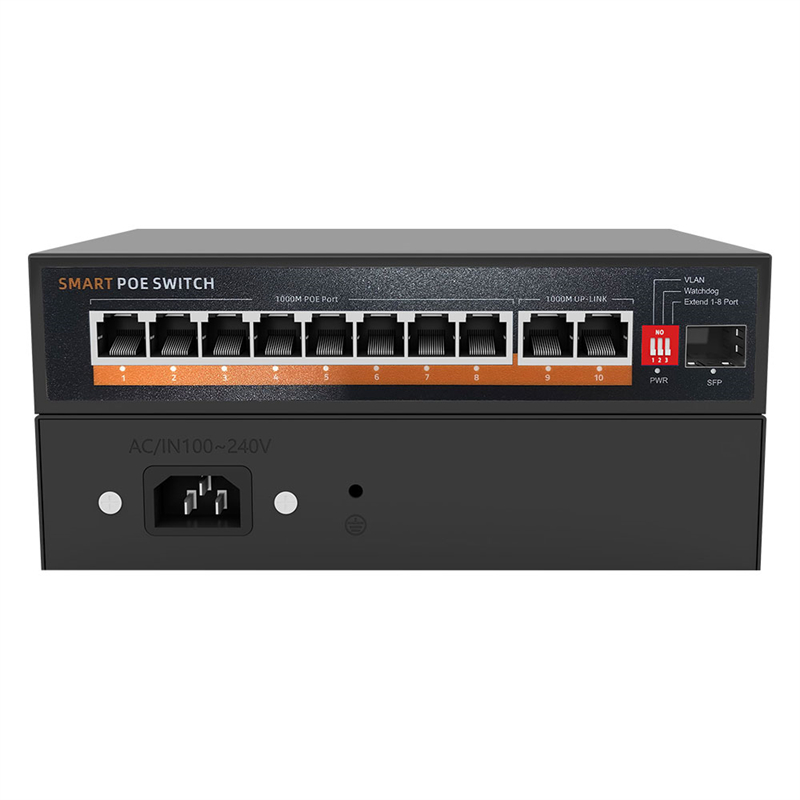

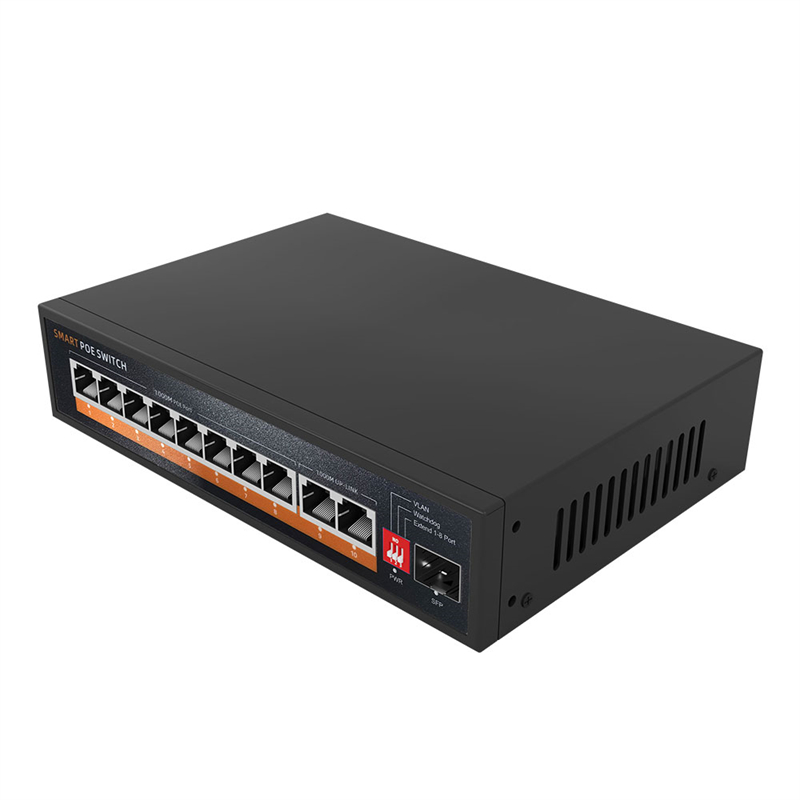

8x 10/100/1000M POE SWITCH+2 Gigabit uplink port + 1 SFP port--Internal power supply--120W

Product Name

10-Ports PoE Switch with 8 PoE Ports and 2 Uplink

Connector Type

8x 10/100/1000M+2*10/100/1000 copper cable RJ45 ports(8 PoE ports+2 Uplink)

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)

Bandwidth

5.6Gbps (non-blocking)

Address Database Size

1K

MTBF

190,000 hours (about 21 years)

Forwarding Mode

Store-And-Forward

Network Protocols

IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control;
IEEE 802.1af DTE Power via MDI; IEEE 802.3af

LED Display

System: power supply; Every Port: connecting, PoE working status

Power Supply

Power input: AC100-240V 50/60Hz; (every country use a custom power plug)

PoE Ports

Port1-8 support POE

PoE Port Power

15.4W for each POE port

PoE Standard

IEEE 802.3af

Led indicator

Green: Ethernet
SW:
On: VLAN, 100meters
Flashing: VLAN, 250meters
Off: VLAN Closed,100meters
Flashing: VLAN Closed, 250meters

Working Environment

Operating Temperature: -20° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C;
Operating Humidity: 10% ~ 95%, non-condensing

Certification

CE Mark ,commercial; CE/LVD EN60950, RoHS

Radiation

CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B

Transmission Distance

Data transmission distance: 100m, 250m( when on 10M data rate with Cat6.)

Warranty

1 year warranty(1 yeas warranty for power adapter)
