3000Mbps Wireless 6 AX Router
3000Mbps Wireless 6 AX Router
— Features
Powerful CPU: Qualcomm Dual-core ARM, Cortex A53 @1.0 GHz, with high reliability, low failure rate and other advances.
Dual Concurrent WiFi: 2.4GHz supports 11ax 2X2/40MHz, 5GHz supports 11ax 2X2/160MHz, Concurrent Dual-Band wireless for connections up to 3000 Mbps.
OFDMA and MU-MIMO: Supports 802.11a/b/g/n/ac/ax, with OFDMA and MU-MIMO deliver data to multiple devices simultaneously with less lag.
More bandwidth to support the barrage of data transmissions from all your smart home and IoT devices: without affecting data-intensive applications like 4K streaming and VR gaming.
— Specifications
Model No. | HT-AX3000H |
Hardware Specifications | |
• | Qualcomm IPQ5018 @1.0GHz |
Memory | DDR 256MB+128MB Nand Flash |
Chipset | IPQ5018+QCN6102+QCA8337 |
FEM | External high gain FEM @ 5G Hz |
Antenna Type | External 5dbi antenna，360° Omnidirectional antenna |
Technical Specifications | |
MU-MIMO | 2*2 (2.4G)+ 2*2 (5G) |
Wireless Signal Rate | • 574Mbps 2.4GHz/2*2 11AX |
| • 2402Mbps 5GHz/2*2 11AX |
Transmit Power | • 2.4G:11AX HE40 MCS11=18±2dBm |
| • 5G:11AX HE80 MCS11=17±2dBm |
Antenna Gain | 2.4G >=5dBi, 5G >=5dBi |
Power Consumption | • Max: 12.5W • Standby: 4.5W |

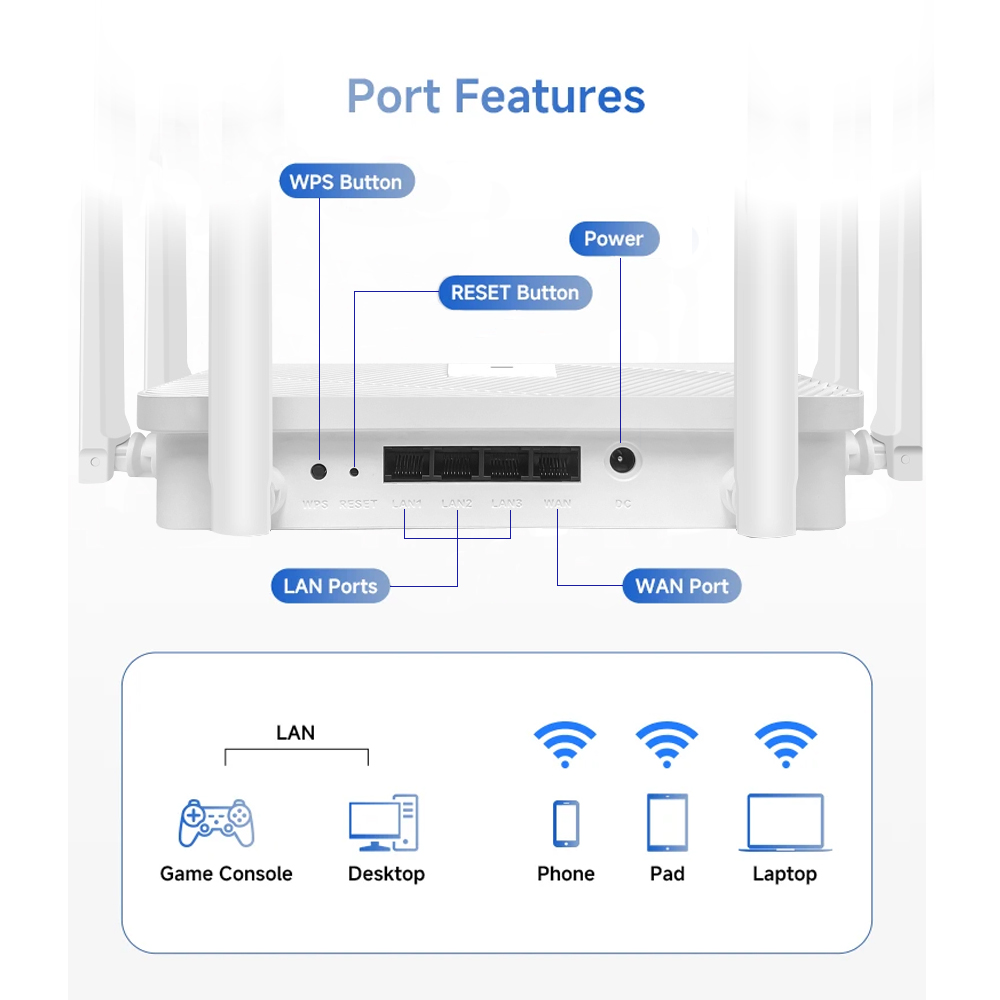

Physical Interfaces |
|
Ethernet Ports | • 1WAN: 10/100M/1000M BASE-T RJ45 Ethernet port |
| • 3LAN: 10/100M/1000M BASE-T RJ45 Ethernet port |
LED | 1* System boot & WiFi indication |
Button | • 1* Reset |
Power Supply | DC 12V 1A |
Environmental Specifications | |
Environment | • Operating Temperature: 0°C〜40°C |
| • Storage Temperature:-10℃-70℃ |
| • Operating Temperature:10%〜90%RH (non-condensing) |
| • Storage Humidity: 5%〜90%RH (non-condensing) |
Advanced Features | |
Wireless Functions | • OFDMA |
• TWT | |
• Enable/Disable Wireless Radio | |
• Multiple SSIDs: 8 (2.4G)+8 (5G) | |
• Enable/Disable SSID Broadcast | |
• Guest Network | |
• Static IP/Dynamic IP | |
• Wireless Encryption: WPA、 WPA2、 WPA3、 WPA-PSK、 WPA2- PSK | |
• Automatic Channel Assignment | |
• MAC Authentication | |
• Load Balancing | |
• Transmit Power Control | |
• WDS | |
• Rate Limit: Based on SSID/Client | |
• QoS:WMM | |
• Band Steering | |
• Seamless Roaming | |
• Mesh | |
Maximum numbers of concurrent users | 64 (2.4G)+64 (5G) |
Management | • Device Management: WEB management & System log |
• AC+AP management | |
• Restore | |
• Backup | |
• SSH & Telnet | |
• Firmware update via Web | |
