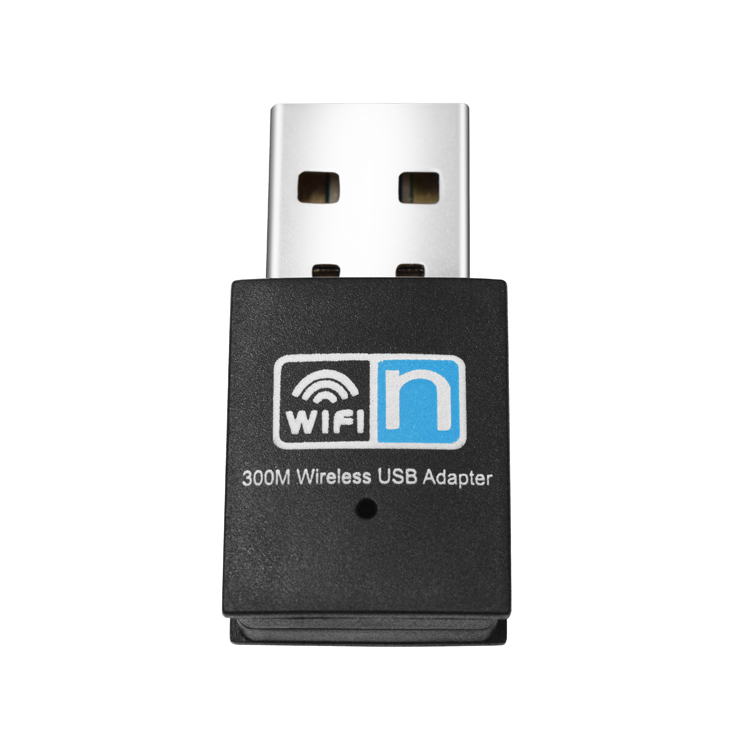

HT-WR812 is a 802.11n USB Wireless adapter, it adopt the Realtek8192 and transfer rate could be 300Mbps. This product can be used to computer, PSP, media player and other device which need the wireless application. It can be settled to be an AP during installation so that can used to share the internet to other Wi-Fi device. user can install it very easy and quickly..
Features:
1.MIMO technology improves data throughput and range over existing 802.11b/g products
2.Add high-speed Wireless-N (draft 802.11n) Internet access to any USB enabled computer
3.Download music & movies, surf the internet and e-mail up to 5 times faster than previous generation wireless networks (Wireless 802.11g)
4.Offers greater coverage than Wireless-G networks for internet access throughout your home or office
5.Works with older Wireless-G and Wireless-B networks
6.Operating distance of up to 300 feet indoor, and up to 900 feet in open space
7.Data transfer rate of up to 300Mbps
Specification:
Wireless Standards | IEEE 802.11n (draft) IEEE 802.11g IEEE 802.11b |
Host Interface | High speed USB2.0/1.1 interface |
Wireless Signal Rates with Automatic Fallback | 802.11n: up to 300Mbps(Dynamic) 802.11g: up to 54Mbps(Dynamic) 802.11b: up to 11Mbps(Dynamic) |
Frequency | 2.4GHz-2.4835GHz |
Wireless Transmit Power | 18dBm(EIRP) |
Modulation Type | DBPSK,DQPSK,CCK,OFDM |
Receiver Sensitivity | 270M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@10% PER |
Work Mode | Ad-Hoc Infrastructure, soft AP |
Wireless Security | WPS, 64/128big WEP, WPA/WPAS, WPA-PSK/WPA2-PSK(TKIP/AES) |
Support Operation System | Windows XP/VISTA/Win7/8/10/Linux/Mac |
Interface | USB2.0 Hi-Speed connector |
Antenna Type | Internal Omni-directional PIFA Antenna |
Environment | Operating Temperature: 0oC to 40oC Storage Temperature: -40oC to 70oC Operating Humidity: 10% ~ 90% (Non Condensing) Storage Humidity: 5% ~ 95% (Non Condensing) |

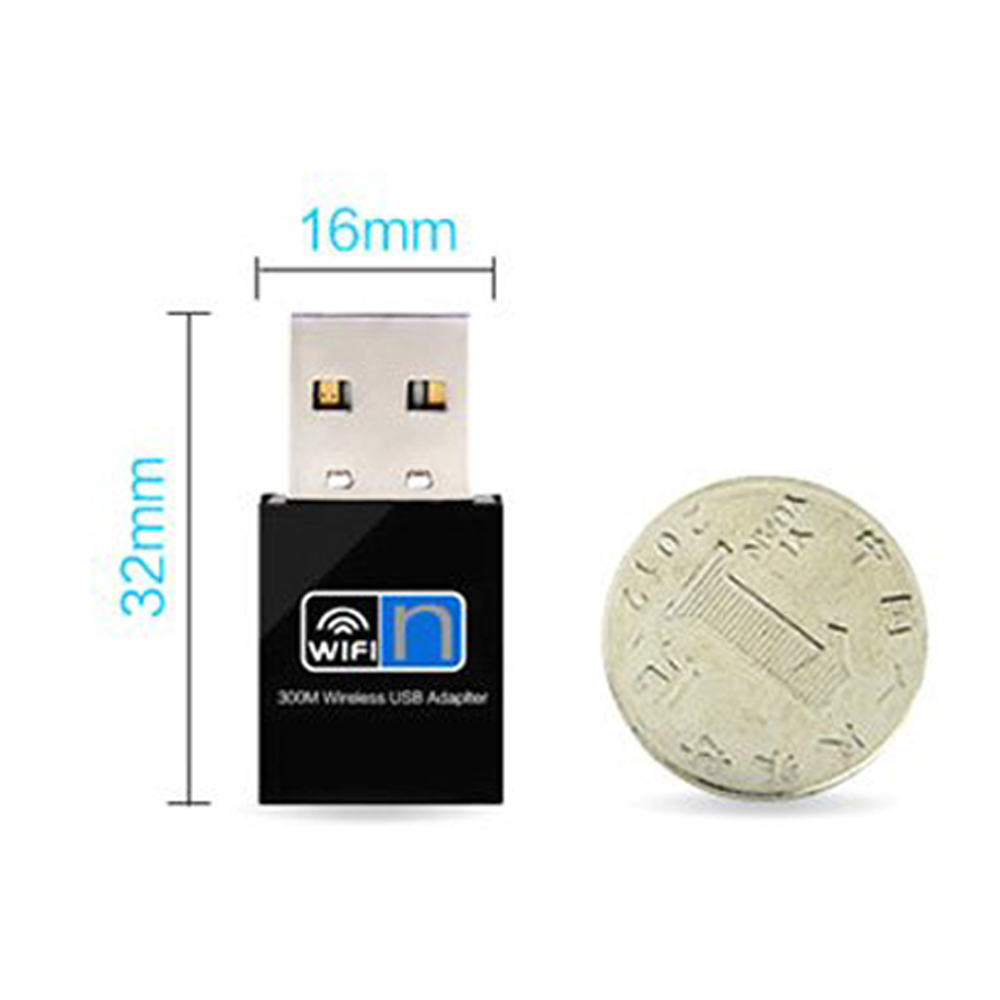

Dimensions | 32mm X 16mm X 6mm, 0.01kg |
Compliant | CE Mark (Europe) RoHS Compliant Wi-Fi Compliant |
