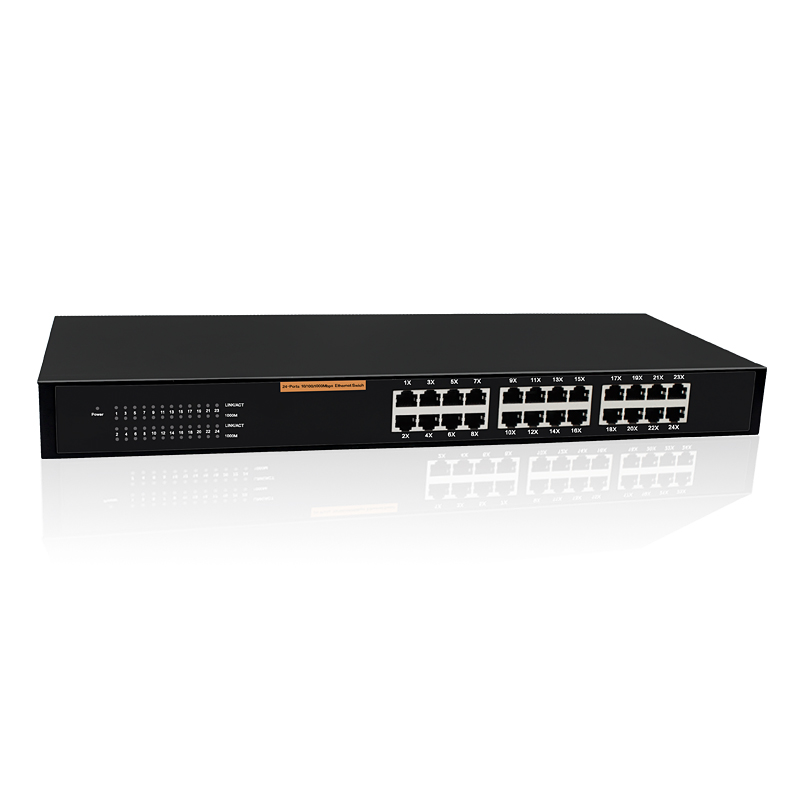

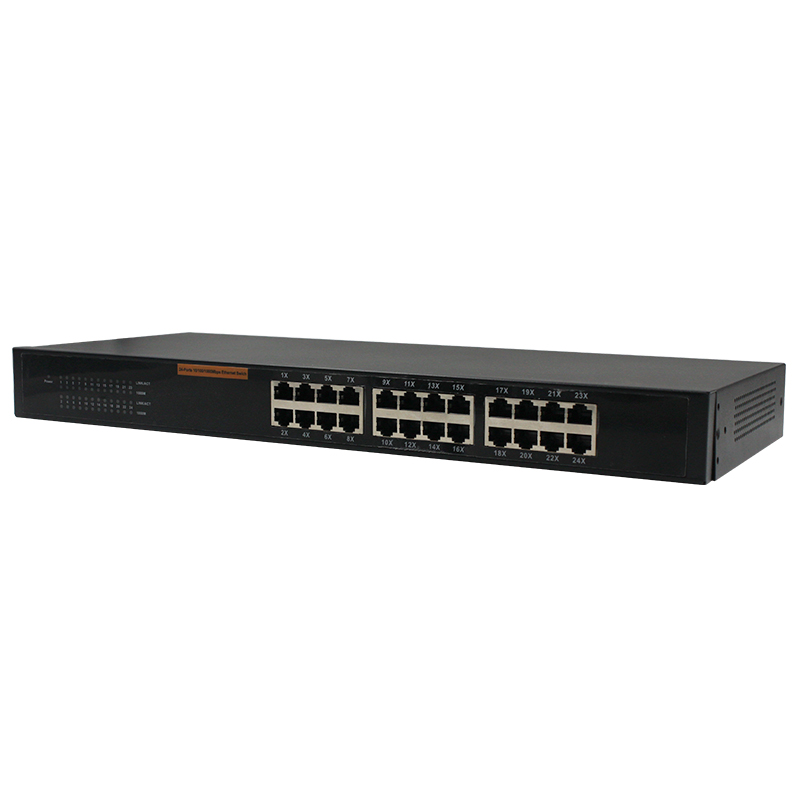

The Fast Ethernet Switch provides 24 10/100/1000Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.
Complies with IEEE802.3, IEEE802.3u standards.
24 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX.
Supports IEEE802.3x flow control for Full Duplex mode and backpressure for half-duplex mode.
Supports MAC address auto-learning and auto-aging.

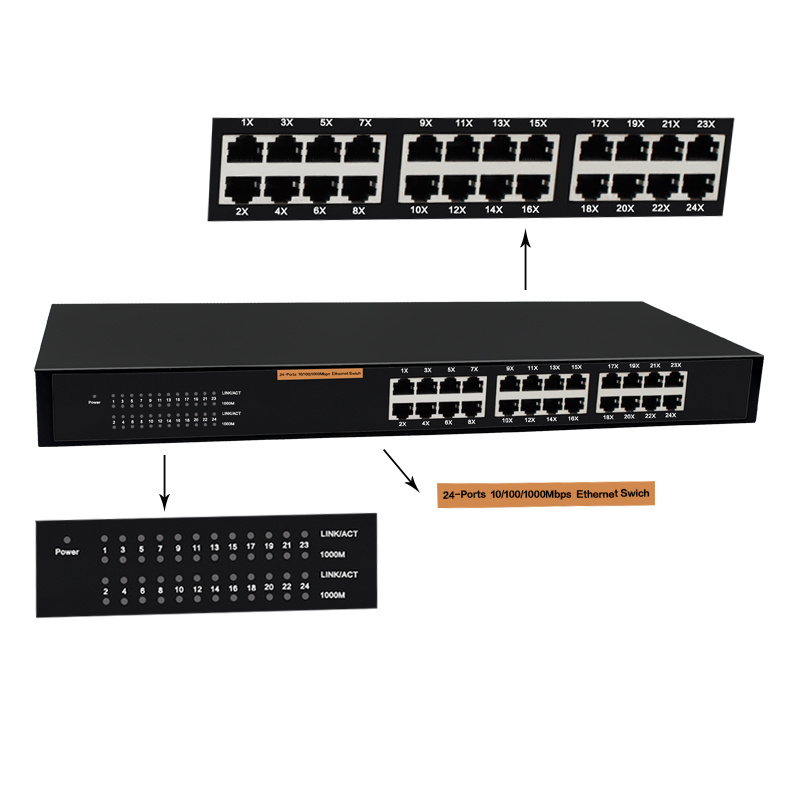

LED indicators for monitoring power, link, activity.
19''rack-mount mode Metal case

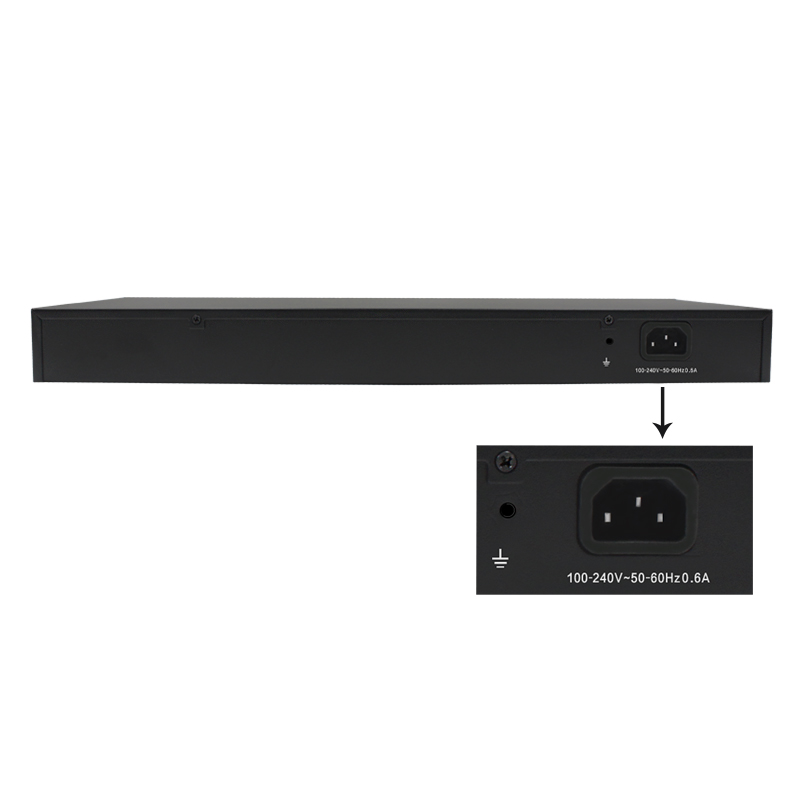

Internal power supply 100~240VAC 50/60HZ
Dimension：440*180*44MM
Specification:
Interface | 24 10/100/1000/Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Power | Input: 100~240VAC 50/60HZ |
Transfer Method | Store and Forward |
Advanced Functions | Green Technology, saving power up to70% 802.3X Flow Control, Back Pressure Auto-Uplink Every Port |
Package Contents | 24-Port 10/100/1000Mbps Desktop Switch Power supply Cable |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
