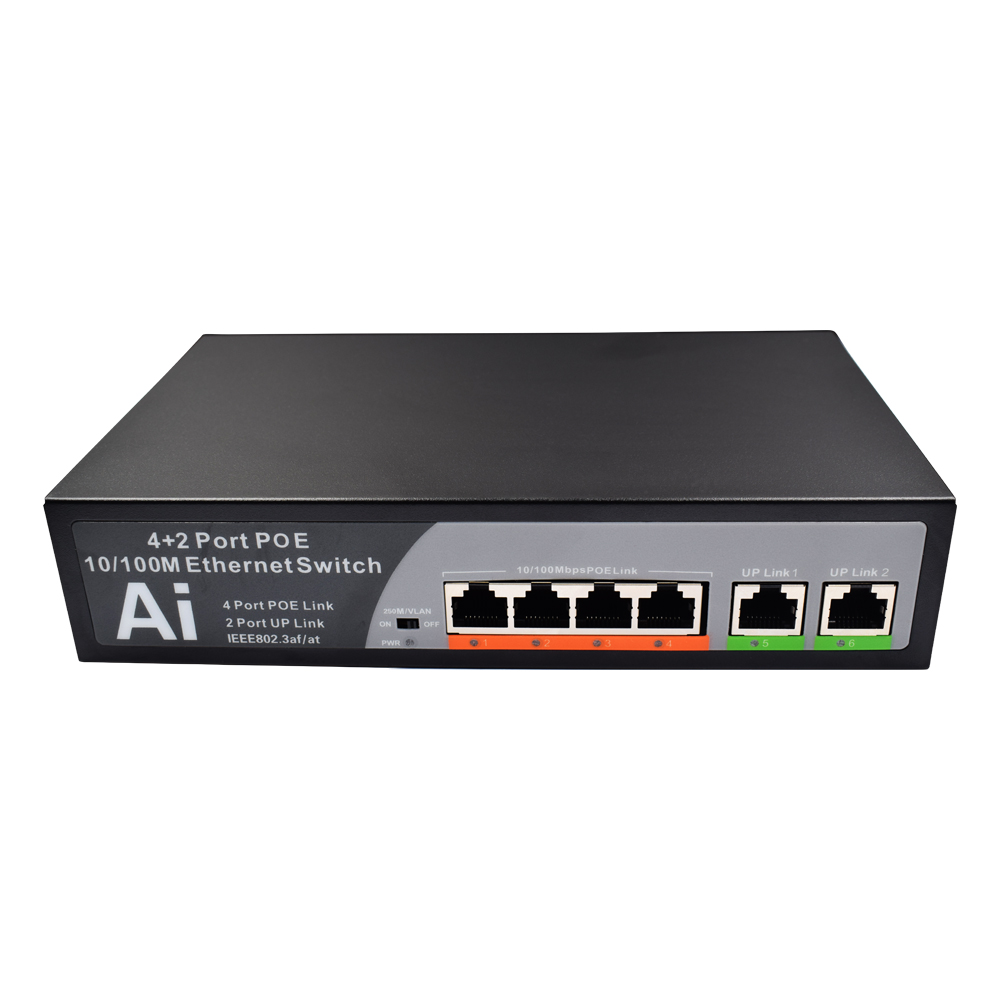

4 Ports 10/100Mbps + 2 Uplink Ports Ethernet PoE Switch

Model HT-POE8606
Spec 4 10/100 Auto-Negotiation RJ45 ports with 4 PoE ports (port-1~port-4) * 2 100M uplink port
Detail

Feature


* 4 10/100 Auto-Negotiation RJ45 ports with 4 PoE ports (port-1~port-4)
* 2 100M uplink port
* 250M cable power support 65W MAX power output
* Supports IEEE 802.3x flow control for Full-duplex Mode and back pressure for Half-duplex
* Mode LED indicators for monitoring power, link, activity and speed
* Desktop mode with Metal Case
* Each POE port Up to 30W of power on
* Compatible With All IEEE 802.3at or Legacy
* Safe: Low Power Devices Receive Only the Power They Need
* Automatic Detection and Protection of Non–standard Ethernet
* Terminals Supports 10/100 Base-T applications
* Plug-and-Play no configuration required Internal power supply Easy installation and maintenance

* complies to IEEE 802.3af/at PoE standard and is backward


Products Description


Model
HT-POE8606
100M POE Rj45
4
100M UPLINK
2
Exchange Mechanism
Store-and-forward
Bandwidth
1.2G
MAC
1K
Environmental
Working Temperature: -10℃~55℃
Storage temperature: -40℃~70℃
Working Humidity :10%~90% RH non-condensing
Storage Humidity:5%~90% RH non-condensing
Power input
AC 100-240V 50/60Hz MAX 65W
