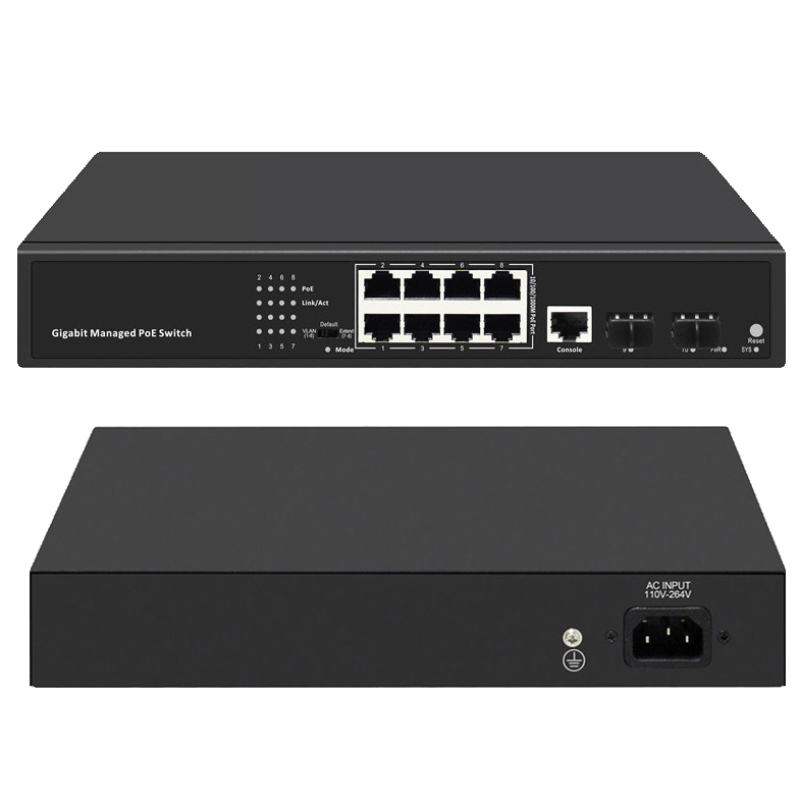

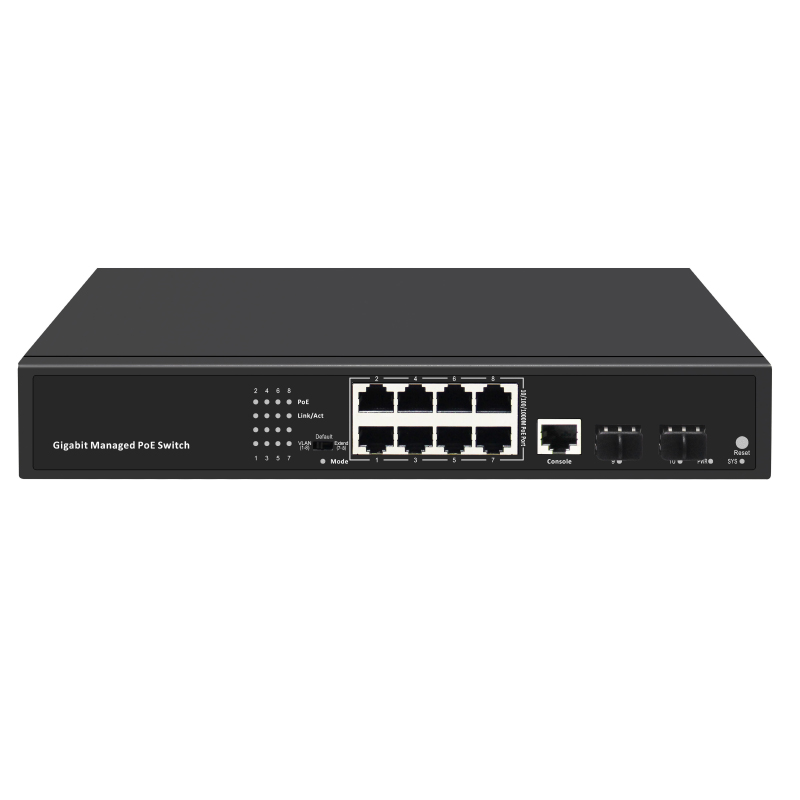

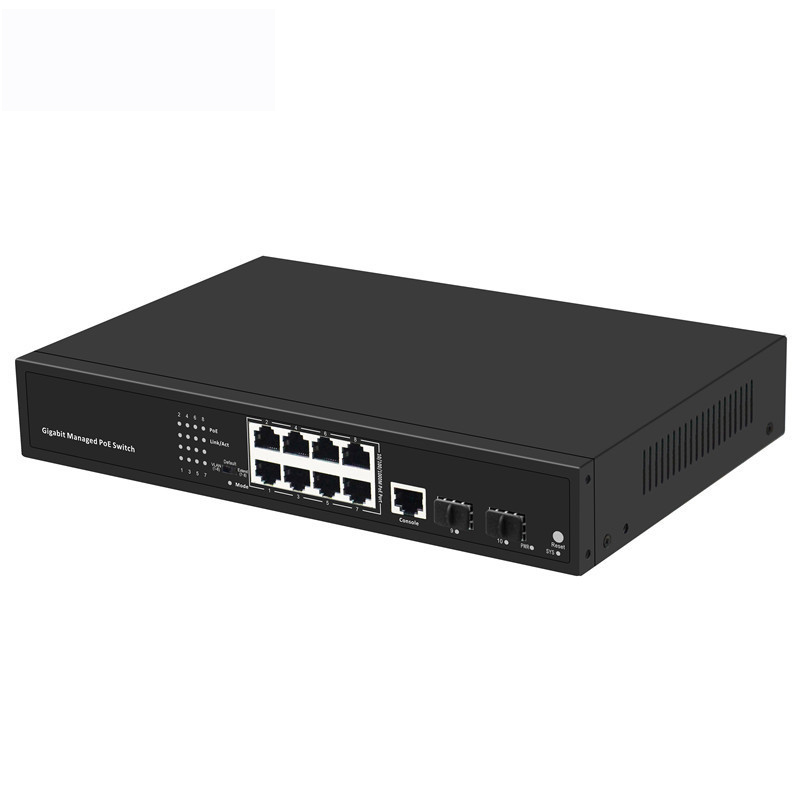

8p Gigabit+1 Console Port + 2SFP Port Lay2 Manageable POE Switch

Model HT-POE5008M
Spec 8 x 10/100/1000Mbps auto-sensing POE Ports, 2 x 1000Mbps SFP Ports, 1 x Console Port
Detail

Features


1. Can transfer data for network surveillance cameras;
1. 8 x 10/100/1000Mbps auto-sensing POE Ports, 2 x 1000Mbps SFP Ports, 1 x Console Port;
2. Support IEEE802.3/IEEE802.3i/IEEE802.3uIEEE802.3ab/IEEE802.3z, IEEE802.3af/at, store-and-forward;
3. Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
4. Ethernet port supports 10/100/1000M adaptive and POE functions;
5. Panel indicator monitoring the status and help failure analysis;
6. Fanless design, Natural Cooling, 1U Rack Mount;
5. Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication;

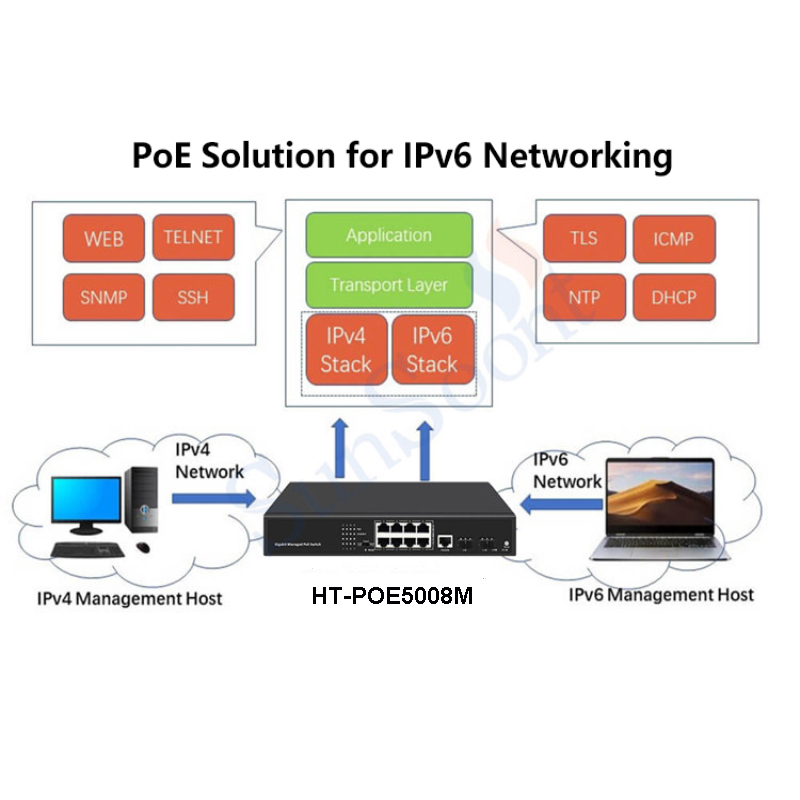

6. Support WEB, TELNET, CLI, SSH, SNMP, RMON management;
7. Support POE Power Management;

8. Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 15KV


Product Description



General Performance Indicator
Product Name
10 Port Gigabit Managed POE Switch
Product Model
BS-AFGM-82NS
Interface
8*10/100/1000M POE Ports + 2*Gigabit SFP Ports + 1*Console Port
Network Protocols
IEEE802.3
IEEE802.3u
IEEE802.3ab
IEEE802.3x
IEEE802.3z
PoE Parameters
PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)
PoE compatibility: IEEE 802.3af/at adaptive
POE port output: DC48-55V
Power Pin Assignment: Power over spare pairs 1/2(+) and 3/6 (-)
Port Lightning Protection
General Mode 6KV,
Differential Mode 4KV,
ESD 15KV.
Network Transmission Medium
10BASE-T: Cat3, 4, 5 UTP (≤ 100 m)
100BASE-TX: UTP (≤100 m) above Cat5
1000BASE-TX: UTP (≤100 m) above Cat5
Optical
MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km
Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km
DIP Definition
VLAN: 1-8 ports are isolated from each other, and only connect Uplink with 9,10 Port;
Default: 1-10 port is standard, all ports can communication;
Extend: 7-8 port supports 250m link extension at a rate of 10M.
Power Supply
Input Voltage: AC100~-240V;
Output: DC 52V2.3A
Total power: 120W







LED indicator
POWER
Lighting:Powered
Un-Light:No Power

SW
Lighting: LVAN
Un-Light: Default
Flashing: Extend
SYS
Flashing: System Start-up
Lighting: System Running

9-10
Lighting: Link connection
Flashing: Data transmission
Un-Light: Link disconnect
POE/ACT
(1-8 Port)
Lighting:Powered
Un-Light:No Power
Link/ACT
(1-8 Port)
Lighting: Link connection
Flashing: Data transmission
Un-Light: Link disconnect
POWER
Lighting:Powered
Un-Light:No Power

SW
Lighting: LVAN
Un-Light: Default
Flashing: Extend
SYS
Flashing: System Start-up
Lighting: System Running

9-10
Lighting: Link connection
Flashing: Data transmission
Un-Light: Link disconnect
POE/ACT
(1-8 Port)
Lighting:Powered
Un-Light:No Power
Link/ACT
(1-8 Port)
Lighting: Link connection
Flashing: Data transmission
Un-Light: Link disconnect

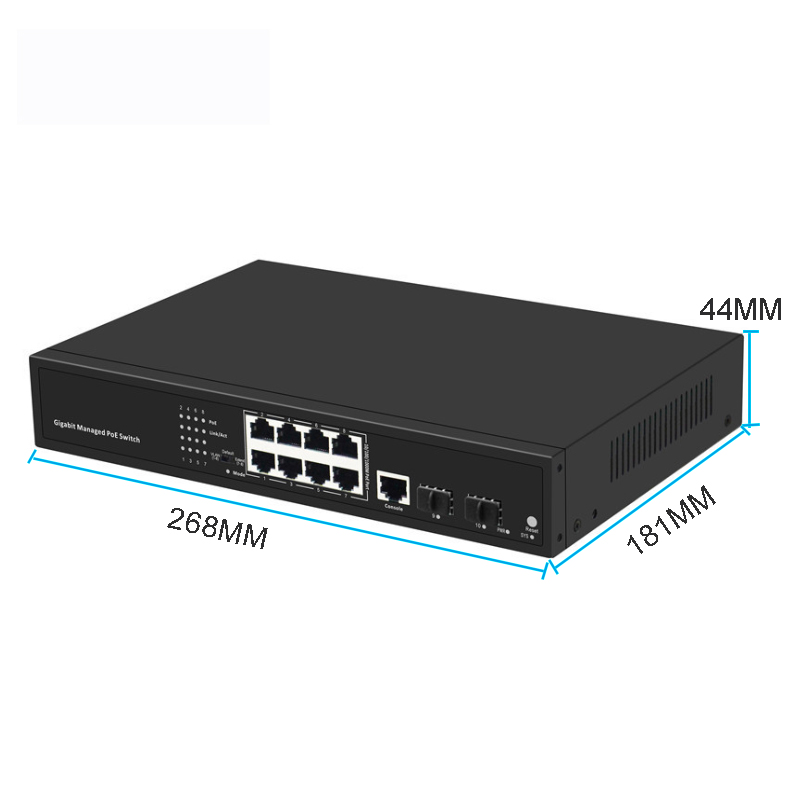

Physical Dimension
Product size (L×W×H): 270mm× 180mm× 45mm
Package size (L × W × H): 312mm × 260mm × 84mm
Working Environment
Operating Temperature: -20℃ ~ 50℃;
Storage Temperature: -40℃ ~ 85℃;
Operating Humidity: Max 90%, non-condensing
Storage Humidity: Max 95%, non-condensing
Working Height: Max to 10,000 feet (3,000 meters)
Storage Height: Max to 10,000 feet (3,000 meters)
