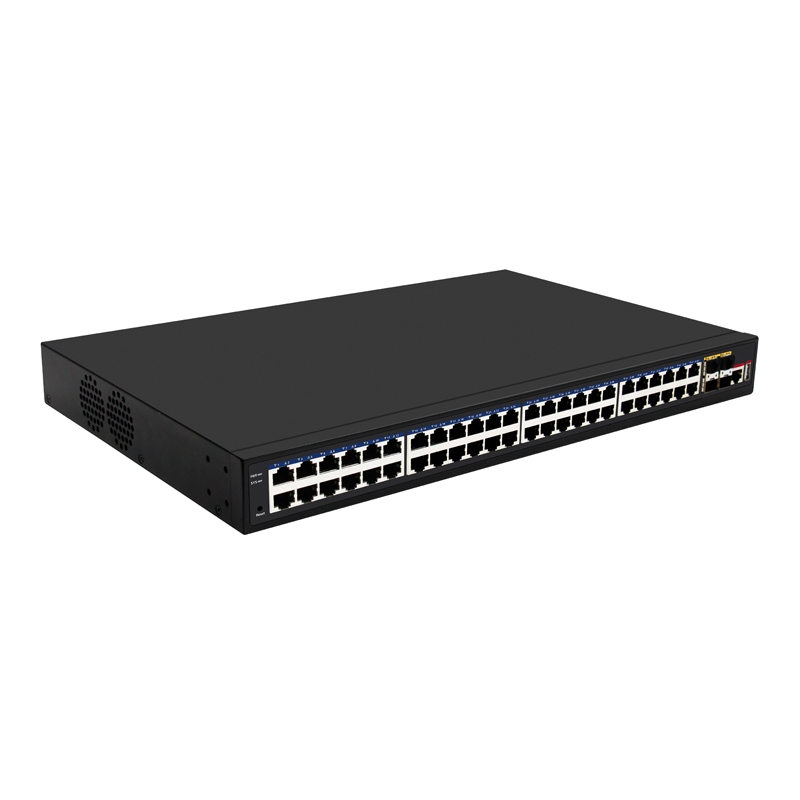

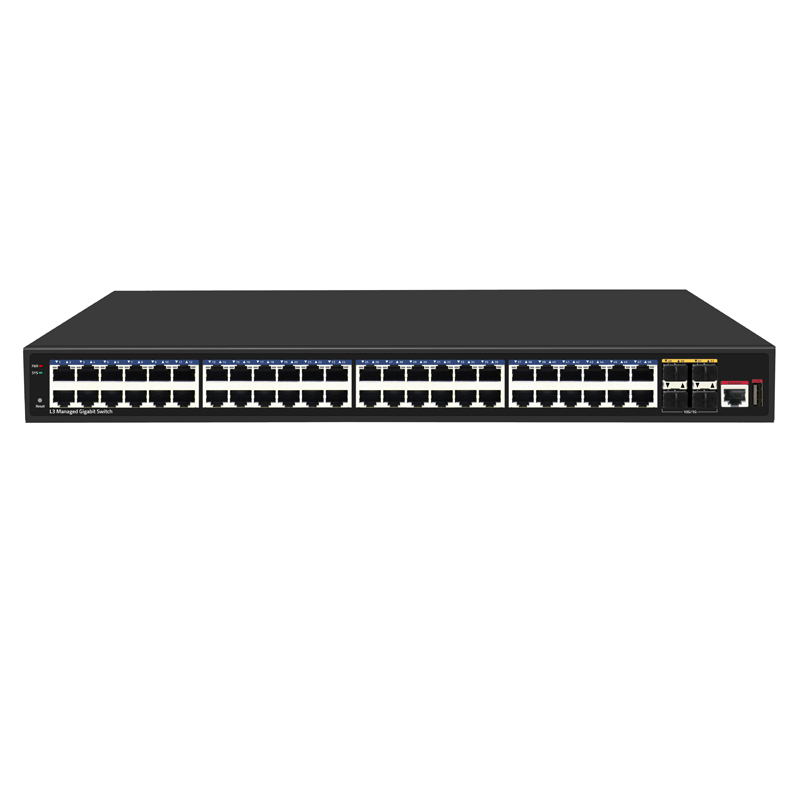

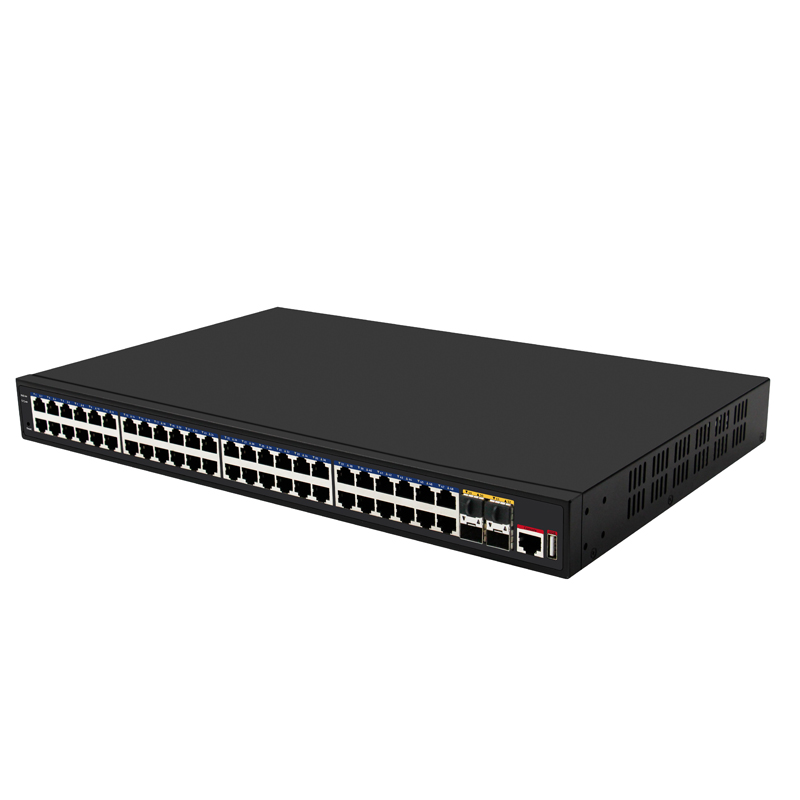

48p Gigabit +4 10G SFP Port Lay3 Manageable POE Switch

Model HT-POE5048M
Spec 48* 10/100/1000Mbps POE Ports (Ports 1-8 support BT Power Supply) 4* 10G SFP+ Port 1* RJ45 Console Port 1* USB serial Port
Detail

Main Features


10G Uplink 48 Ports Gigabit L3 Management Ethernet POE switch, provides 48* 10/100/1000M POE Ethernet Ports, 4* 10G SFP+ Ports, 1* console Port, 1* USB Serial Port. With perfect security control policy and CPU Protect Policy, it can improve fault tolerance and ensure the stable operation of the network and load balance of links. The switch supports automatic DoS attack defense, SNMP, IEEE 802.1, STP, RSTP, and link aggregation. With advanced security features and advanced quality of Service (QoS), it can be used as a core, distribution or access layer switch with high-end port density, ease of management, it is an ideal choice for a variety of business networking applications.

Support IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3. IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE802.3ae standard; L3 management，
support DHCP Server, QoS, ACL Control, SNMP V1/V2/V3, IGMP Snooping v1/v2；
Support STP/RSTP/MSTP
(ERPS), Support loop detection and self-healing, remote loop back monitoring and control (802.3ah OAM);
Support multiple VLAN divisions, MAC VLAN, protocol VLAN, and Private VLAN;
Support IP address +MAC address +VLAN+ port binding, DHCP Snooping, IP source and DAI protection;
Support IPV4/ IPV6, RIP, OSPF Surge Protection: Common mode≥6KV, ESD：Contact≥6KV. air≥8KV;
Support WEB,TELNET, CLI, SSH, SNMP, RMON management;
Support IEEE802.3at (30W) and IEEE802.3bt (90W);
Support PoE watchdog, PoE Port power；

supply, Power configuration and PoE time management.


Product Description


Product Model
HT-POE5048M
Product Name
10G Managed SY-48G410G4SMP 52-Port Gigabit PoE switch
Power
AC100-240V/50-60Hz
Ethernet
48* 10/100/1000Mbps POE Ports (Ports 1-8 support BT Power Supply) 4* 10G SFP+ Port
1* RJ45 Console Port 1* USB serial Port
Switching Capacity
176Gbps
Packet Buffer Memory
512MByte
Flash Memory
32MByte
DDR SDRAM
16Mbit
MAC Address
32K
Jumbo Frame
12Kbytes
Transfer Mode
Store and forward
MTBF
100000 hour100000 Hours
Power Voltage
Working Voltage: AC100-240V 50/60Hz
Supply: 52V 11.5A/ 12V 6A
Working Environment
Working Temperature：-10~50°CStorage Temperature：-40~70°CWorking Humidity ：10%~90%，non-condensing
Storage Temperature：5%~90%，non-condensing
