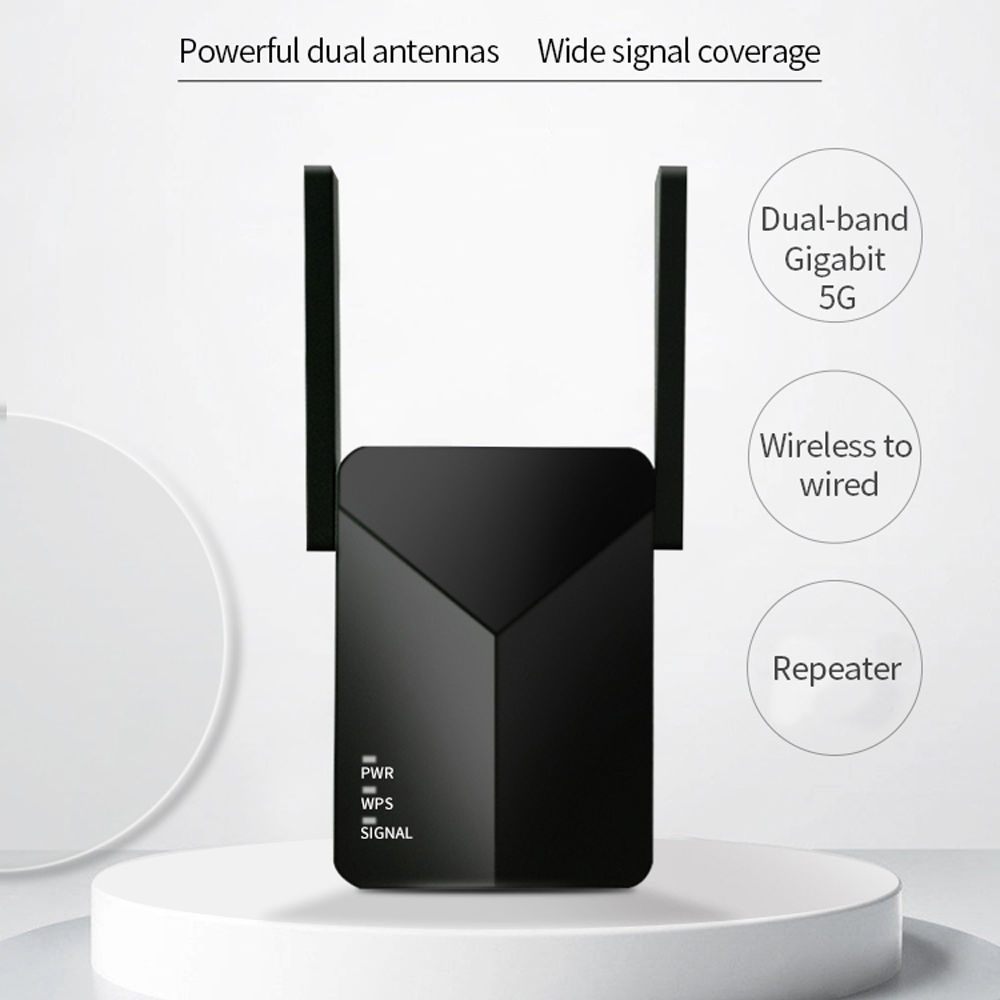

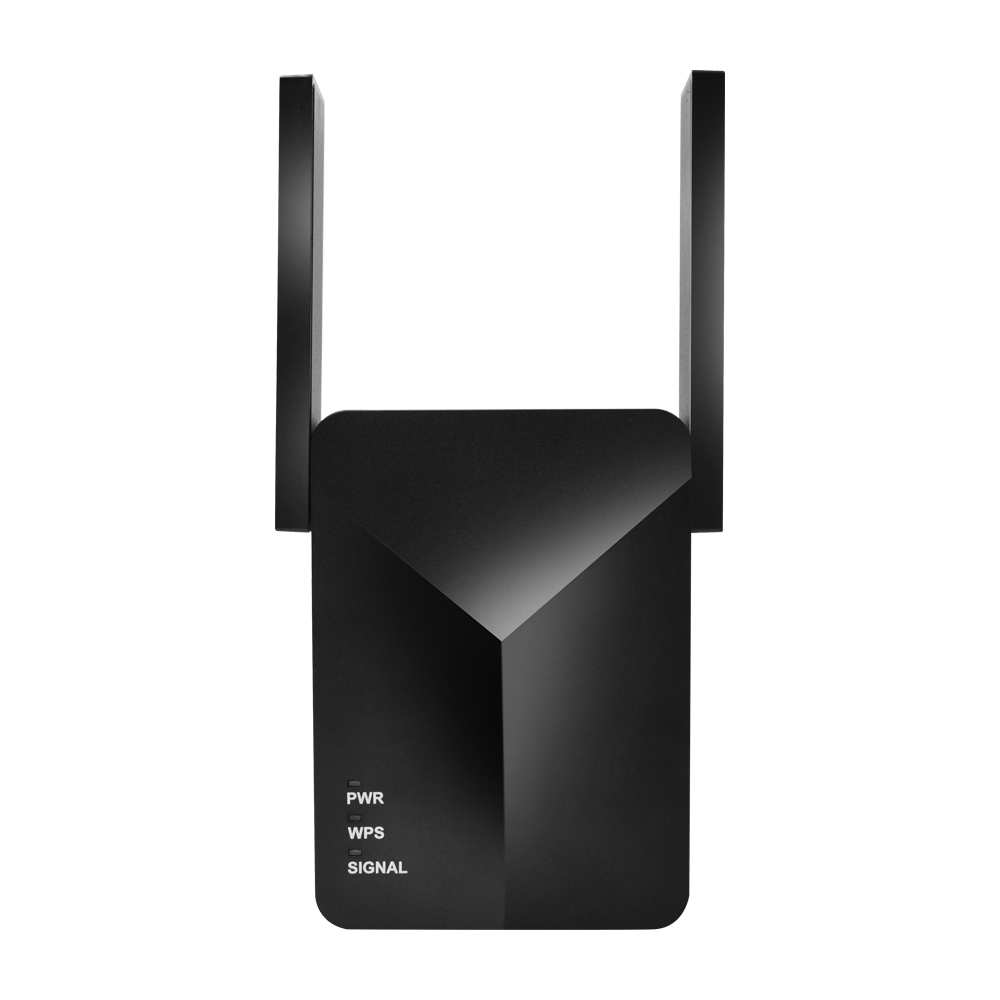

AX1500Mbps 2.4 GHz & 5.8GHz 2 * 2dBi Antenna WiFi Repeater

Model HT-F1500AX
Spec Dual Band : 2.4Ghz and 5.8Ghz * 1* Gigabit LAN Port, Support Auto MDI/MDIX
Detail

Description:


This dual band wifi Repeater is Mainly used for providing free WIFI service in big area such as factory , community , street ,home or etc. For example, the normal enhancer can expend distance up to 50~100 meters away. If there are more repeaters or more bigger power repeater, the range will extended further; the Repeater simultaneously supports 2.4G and 5G wireless network connection, and it can supports 2.4G and 5G transmission speeds of up to 1500M. It has 2dBi Antennas providing even better wireless performance, transmission rate , stability technology automatically avoids channel conflicts using its channel selection feature.


Features:


* Dual Band : 2.4Ghz and 5.8Ghz
* 1* Gigabit LAN Port, Support Auto MDI/MDIX
* Range Extender mode boosts Wireless Signal to previously unreachable or hard-to wire areas flawlessly
* Small size and wall-mounted design make it easy to deploy and move flexibly
* WPS button allows users to set up instantly Smart
* Signal Indicator helps to find the right location to place the range extender

* Encryption : 64/128 bits WEP;WPA/WPA2


Product Description


Standards
IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Mode
Repeater/AP
Chipset
RTL8197H-VE5+RTL8832BR+YT8531C
Flash
128MB
RMA
128MB
Wireless Signal
Rates With
Automatic Fallback
5GHz
11ac: Up to 1201Mbps(dynamic)
2.4GHz
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Frequency Range
2.4 GHz & 5.8GHz


Wireless
Transmit Power
<20dBm(EIRP)
Modulation Type
DBPSK,DQPSK,CCK, OFDM
Receiver Sensitivity
MSC7- HT20:-68dBm@10% PER
OFDM-54M:-68dBm@10% PER
CCK-11M: -89dBm@10% PER
Wireless Security
64/128 bit WEPWPA/WPA2, WPA-PSK/WPA2-PSK
(TKIP/AES)
Interface
1 * 10/100/1000M LAN
Antenna Type

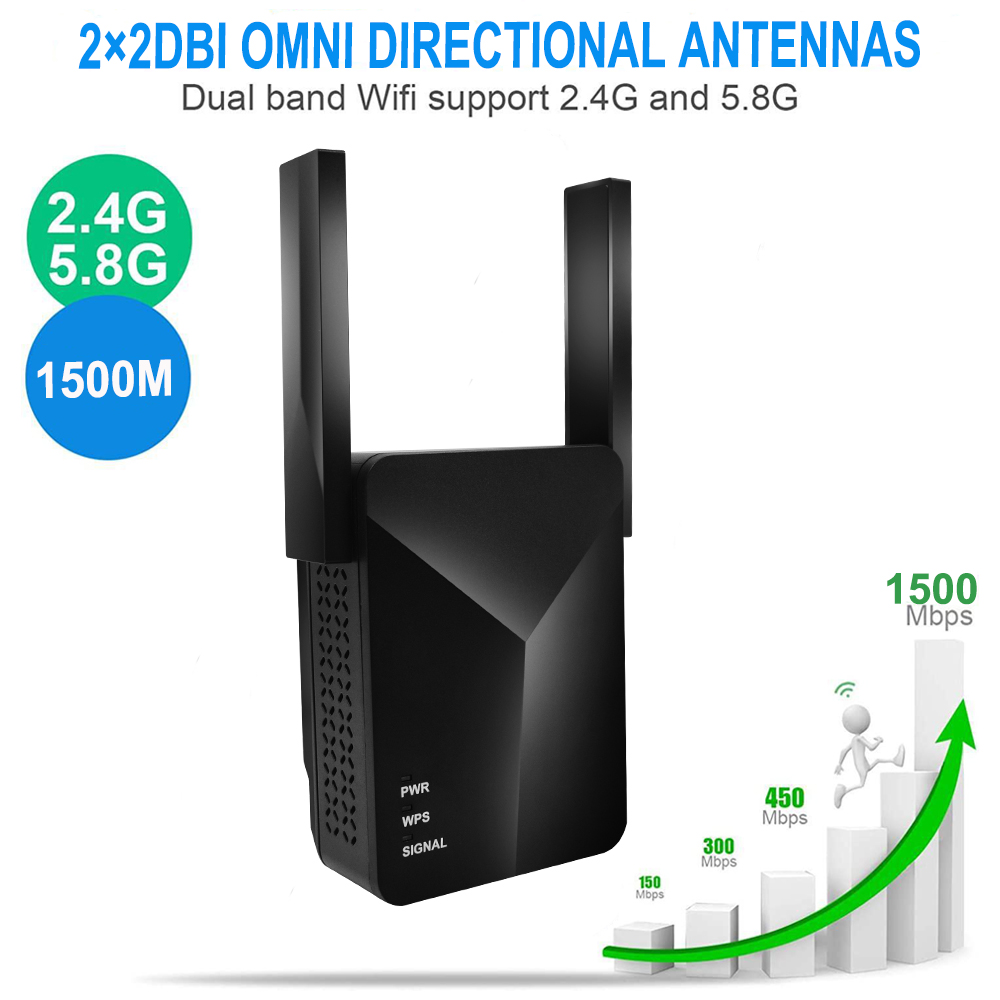

2 * 2dBi Antenna
Power supply
Input AC100~240V
Operating Temperature
0°C~40°C (32°F~104°F)
Storage Temperature
-40°C~70°C (-40°F~158°F)
Relative Humidity
10% ~ 90%, non-condensation
Storage Humidity
5%~95% non-condensing
