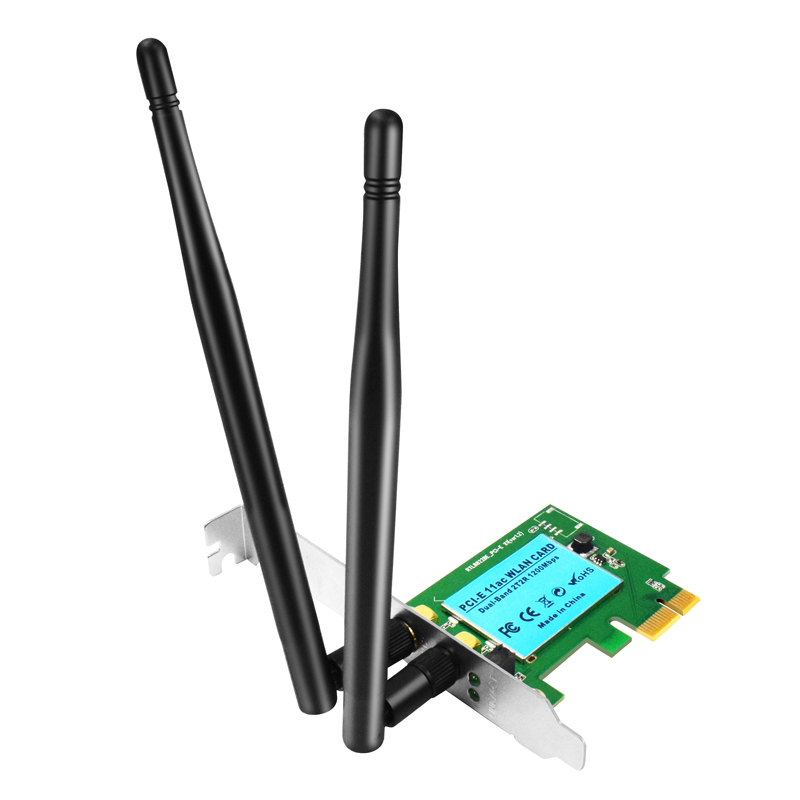

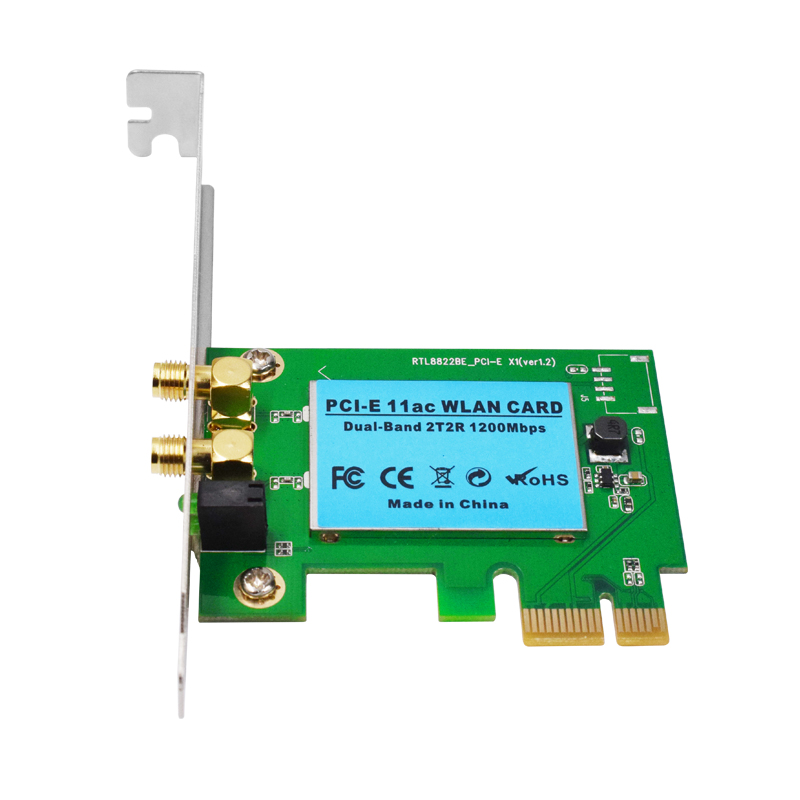

AC1200M WiFi PCI-Express Wireless 2.4G 5G PCI-E Card

Model HT-P1200G
Spec Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mpbs on 2.4 GHz band)
Detail

Feature


High Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mpbs on 2.4 GHz band)
802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage
Beam forming – Wi-Fi signals are strengthened towards certain direction where client exists

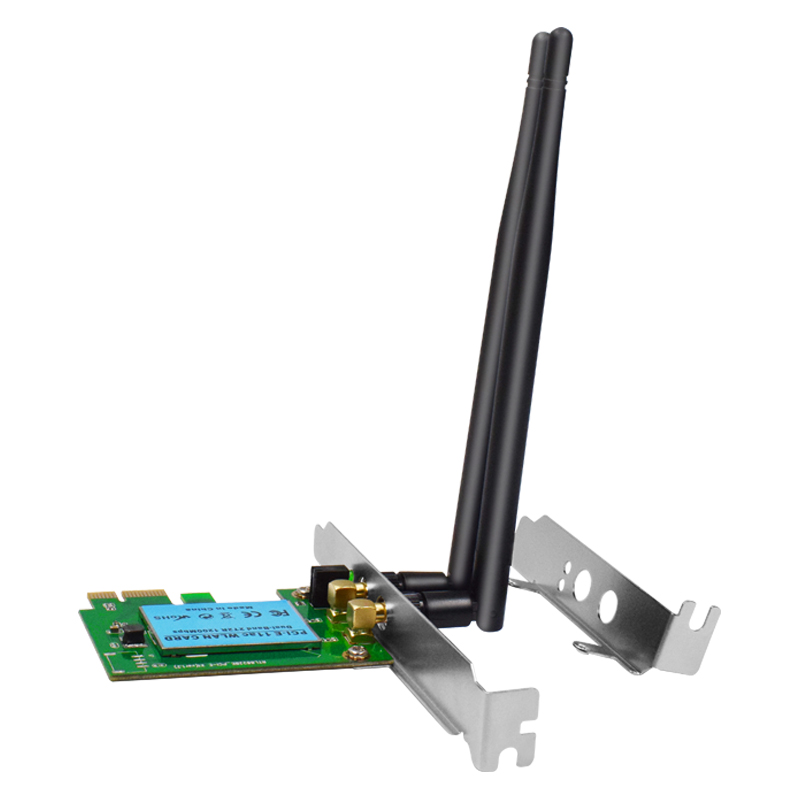

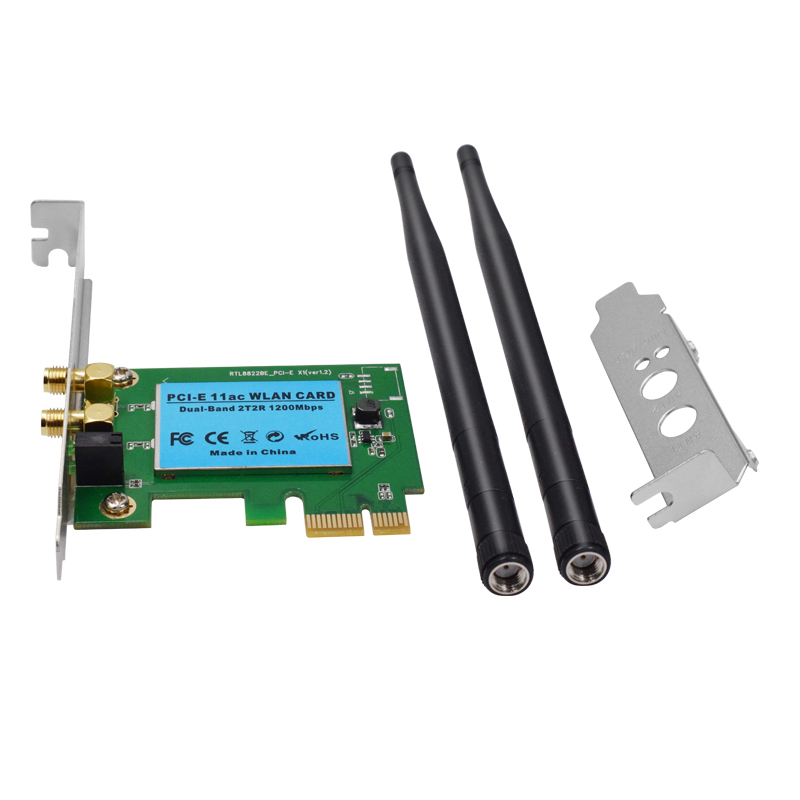

Multiple-Size Brackets – Low profile and full heigh brackets are both provided, suitable for all PCs
2×2 MIMO – Users can easily access to high-speed wireless connection

Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability


Product Description


Wireless Standards
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz
Host Interface
PCI Express
Signal rate
5 GHz
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Frequency Band
2.4/5G dual band support
Radio Channel
1 ~ 14 channels (Universal Domain Selection)
Wireless Modes
Infrastructure mode
Antenna type
Two Dual Band Detachable External Antennas
Roaming
Full mobility and seamless roaming from cell to cell
Modulation
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
Data Security
64/128-bit WEP Encryption
WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES
Network
Auto-switch to use 802.11AC or 802.11N or 802.11b mode
Supports Ad-Hoc, Infrastructure WLAN network
Wireless roaming
Data rate auto fall-back under noisy environment or longer range distance
Site Survey with Profile function
Configuration & Management
Plug-and-Play setup and installation
Management Utility supports 2000 / XP/ Vista
LED Indicator
Link/Act
Operating System
Windows 2000, XP, Vista , Linux and MAC OS X
Weight
50g
Dimension
120 (L) x 65 (W) x 15 (H) mm (PCBA)
Environment
Operating Temperature: 0oC to 55oC
Storage Temperature: -20oC to 75oC
Operating Humidity: 10% ~ 90% (Non Condensing)
Storage Humidity: 5% ~ 95% (Non Condensing)
