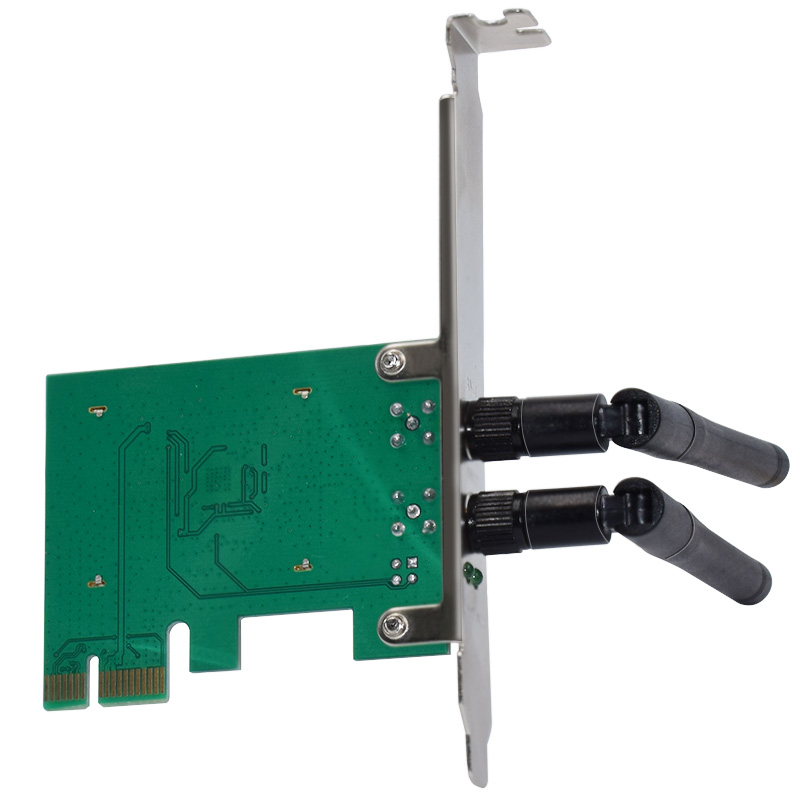

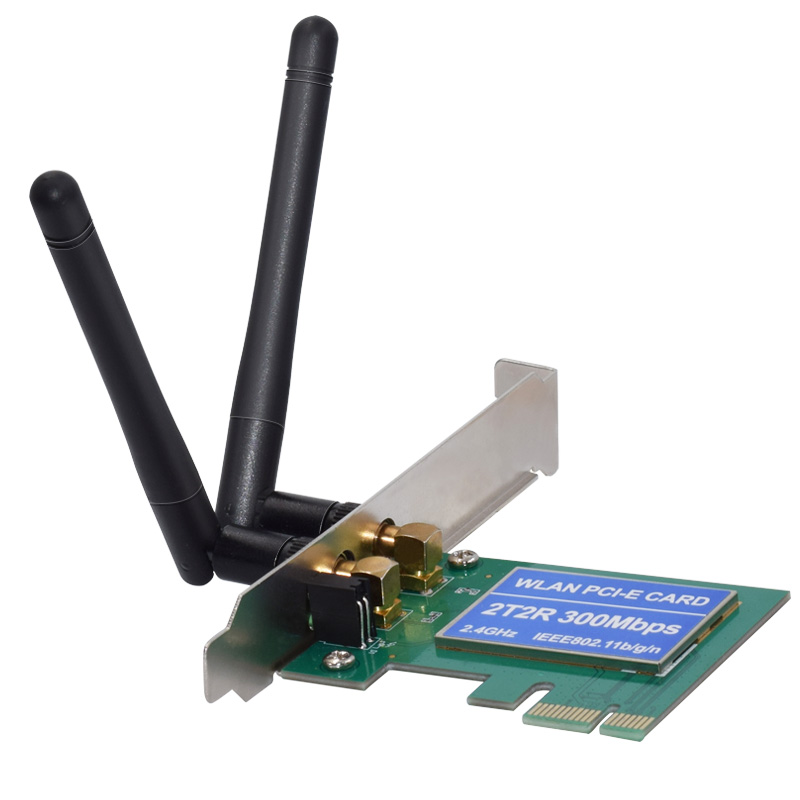

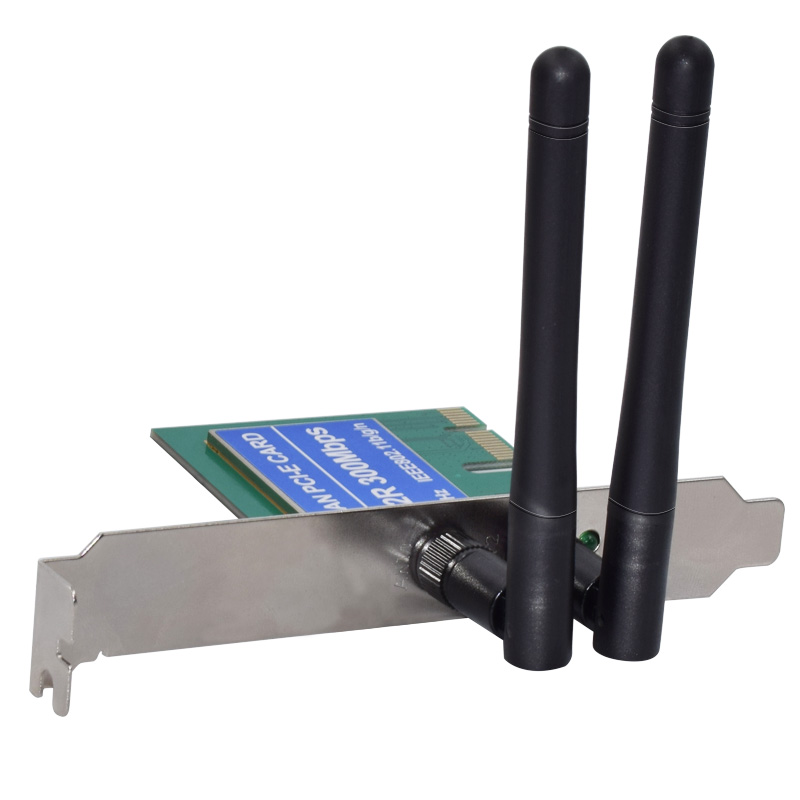

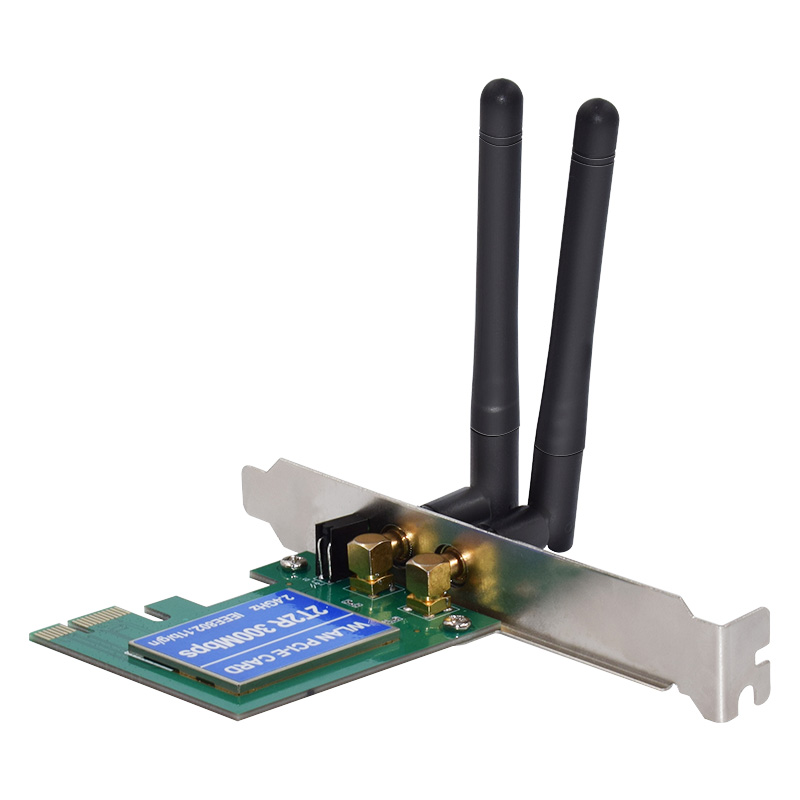

300Mbps Mini Wireless PCI-e card Adapter/Wifi PCI-E

Model HT-LD300
Spec 300Mbps wireless 802.11B/G/N transmission rate
Detail

Feature:

300Mbps wireless 802.11B/G/N    transmission rate
Provides two methods of operation: Infrastructure and Ad-Hoc
Quick secure setup, complies with WPS for worry free wireless security
Supports 64/128-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV expansion, shares key authentication, IEEE 802.1XSupports sony PSP for online game
Supports Windows 2000/XP/Vista/Win7/CE/Linux/MAC
Seamlessly compatible with 802.11n/g/b devices
150Mbps wireless transmission rate



Specification:



Software Specification
StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Signal Rates


With Automatic Fallback		11g: Up to 54Mbps(dynamic)


11n: Up to 300Mbps(dynamic)


11b: Up to 11Mbps(dynamic)
Frequency Range2.4-2.4835GHz
Wireless Transmit Power20dBm(MAX EIRP)
Modulation TypeOFDM/CCK/16-QAM/64-QAM
Receiver Sensitivity (without antenna)300M: -68dBm@10% PER


150M: -68dBm@10% PER


130M: -68m@10% PER


54M: -85dBm@8% PER


6M: -88dBm@10% PER


1M: -90dBm@8% PER
Work ModeAd-Hoc


Infrastructure
Wireless Security64/128 bit WEPWPA/WPA2,WPA-PSK/WPA2-PSK(TKIP/AES)
Support Operating SystemWIN2000/INXP/VISTA/WIN7/EC/LINUX/MAC
Hardware Specification
InterfaceStandard 32-bit PCI-e 2.2 or Higher
CertificationsCE,FCC
Operating Temperature0 °C~40 °C(32°F ~104°F )
Storage Temperature-40 °C~70 °C(-40°F~158°F )
Relative Humidity10% ~ 90%,non-condensation
Storage Humidity5%~90%,non-condensation
