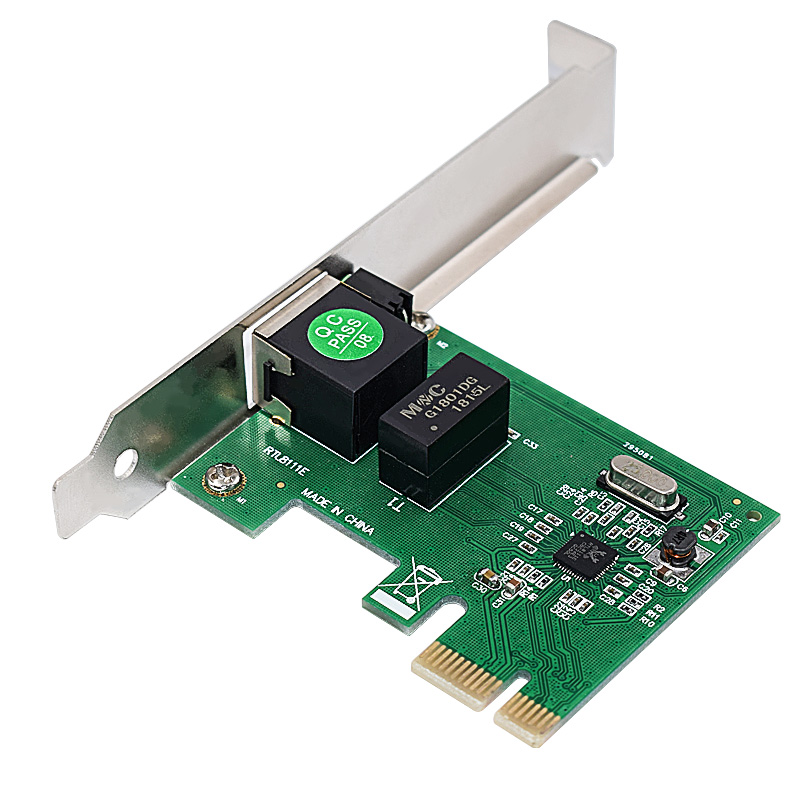

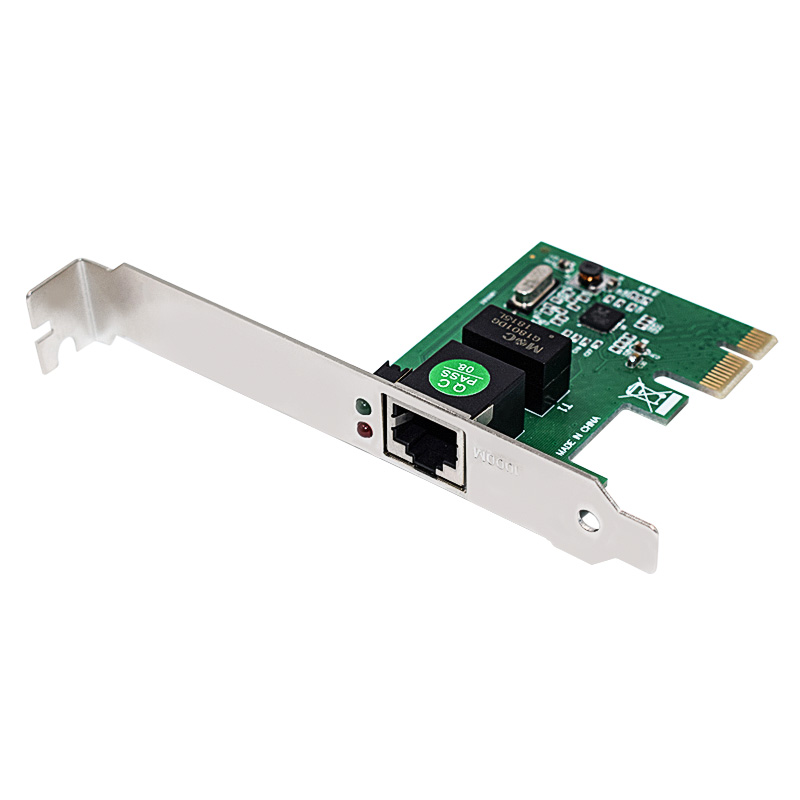

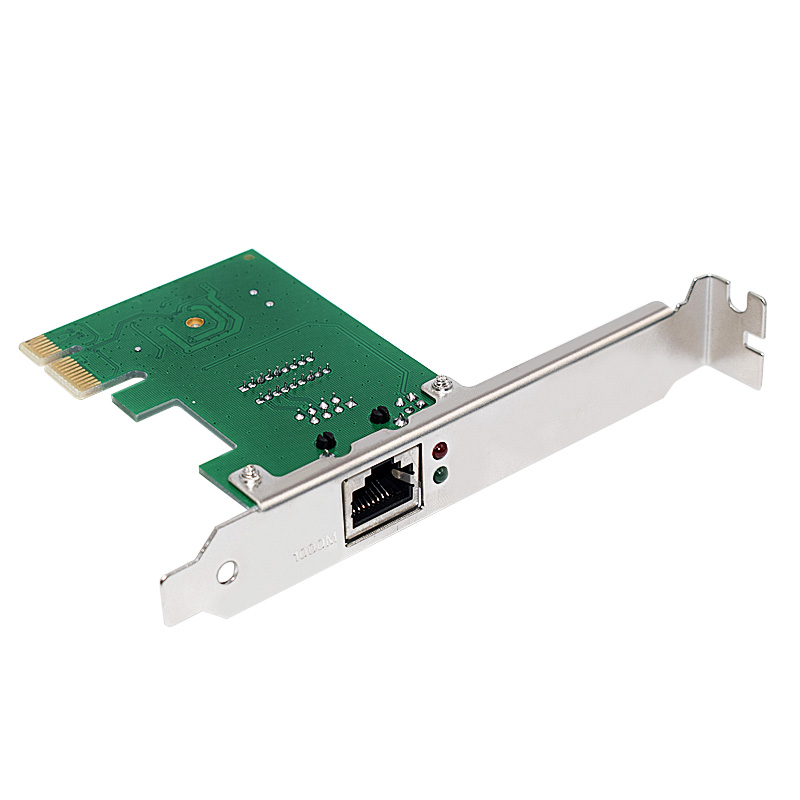

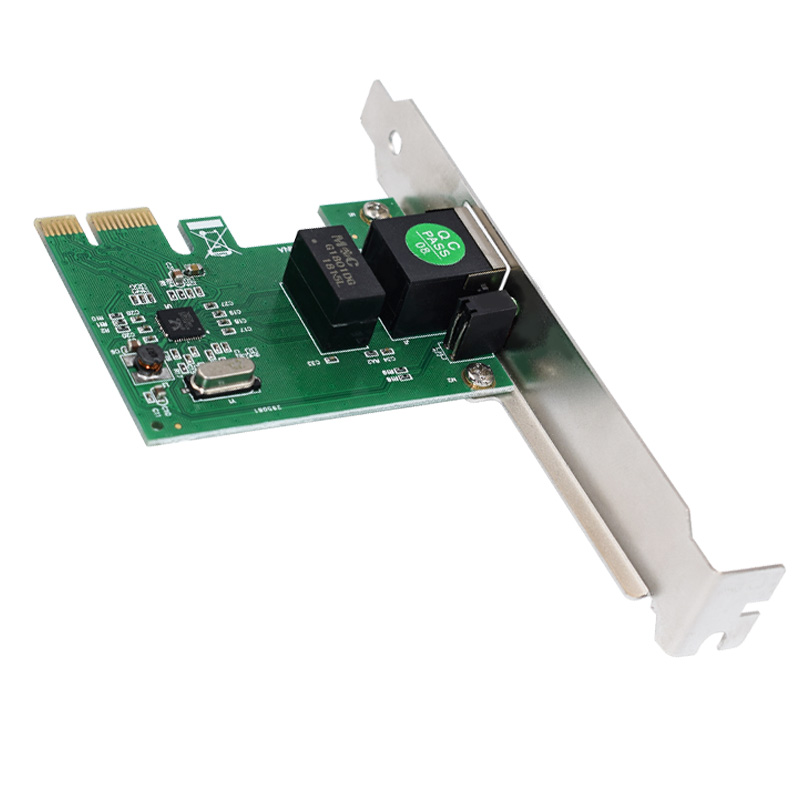

10/100/1000Mbps RJ45 Network PCI-E Card

Model HT-LD310
Spec Operating SystemWindows 98se/Me/2000/XP/XP64, Linux, Vista32/64
Detail

Feature


Standards and ProtocolsIEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
CSMA/CD, TCP/IP
Interface32-bit PCIe 1.0aTransmission Rate10/100Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode
Flow ControlIEEE 802.3x Flow Control (Full-Duplex)Jumbo Frame4k BytesPort10/100/1000Mbps RJ45

Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicator1000M Link/Act, 100M Link/Act, 10 Link/Act, DuplexSafety & EmissionFCC, CEEnvironmentOperating Temperature: 0°C~40°C
(32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Operating SystemWindows 98se/Me/2000/XP/XP64, Linux, Vista32/64


Product Description


Standards and Protocols
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
CSMA/CD, TCP/IP
Interface
32-bit PCIe 1.0a
Transmission Rate
10/100Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode
Flow Control
IEEE 802.3x Flow Control (Full-Duplex)
Jumbo Frame
4k Bytes
Port
10/100/1000Mbps RJ45
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicator
1000M Link/Act, 100M Link/Act, 10 Link/Act, Duplex
Safety & Emission
FCC, CE
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Operating System
Windows 98se/Me/2000/XP/XP64, Linux, Vista32/64
